Notched-Bar Impact Testing: toughness and fracture evidence
Students use the Materials remote lab to observe notched-bar impact tests, connect absorbed impact energy with toughness, compare treatments, and interpret fracture surfaces cautiously.
Learning Outcomes
Explain why notched-bar impact tests are used to compare toughness.
Use impact-test video/result evidence to compare material treatments.
Distinguish hardness or strength from impact toughness.
Interpret fracture-surface observations without overclaiming.
State limitations of a single temperature and single-specimen impact result.
Student activity preview
Activity Content
Preview only. In a class session, students can fill in responses and submit their work to the teacher.
1. Why a notch and a fast impact?
15 min
A notched-bar impact test asks a different question from a tensile or hardness test: how much energy can a specimen absorb during a rapid fracture process?
The notch concentrates stress in one location. That makes the test sensitive to brittle behavior, heat treatment, microstructure, and temperature. A material can be hard or strong but still absorb little impact energy if it fractures suddenly.
In a pendulum impact test, the hammer starts with a known amount of mechanical energy. Breaking the specimen takes some of that energy, so the pendulum rises less after impact. The lab may report this directly as absorbed energy or show a final scale/rebound view. If the scale is labeled as absorbed energy, a higher value means the specimen absorbed more energy during fracture.

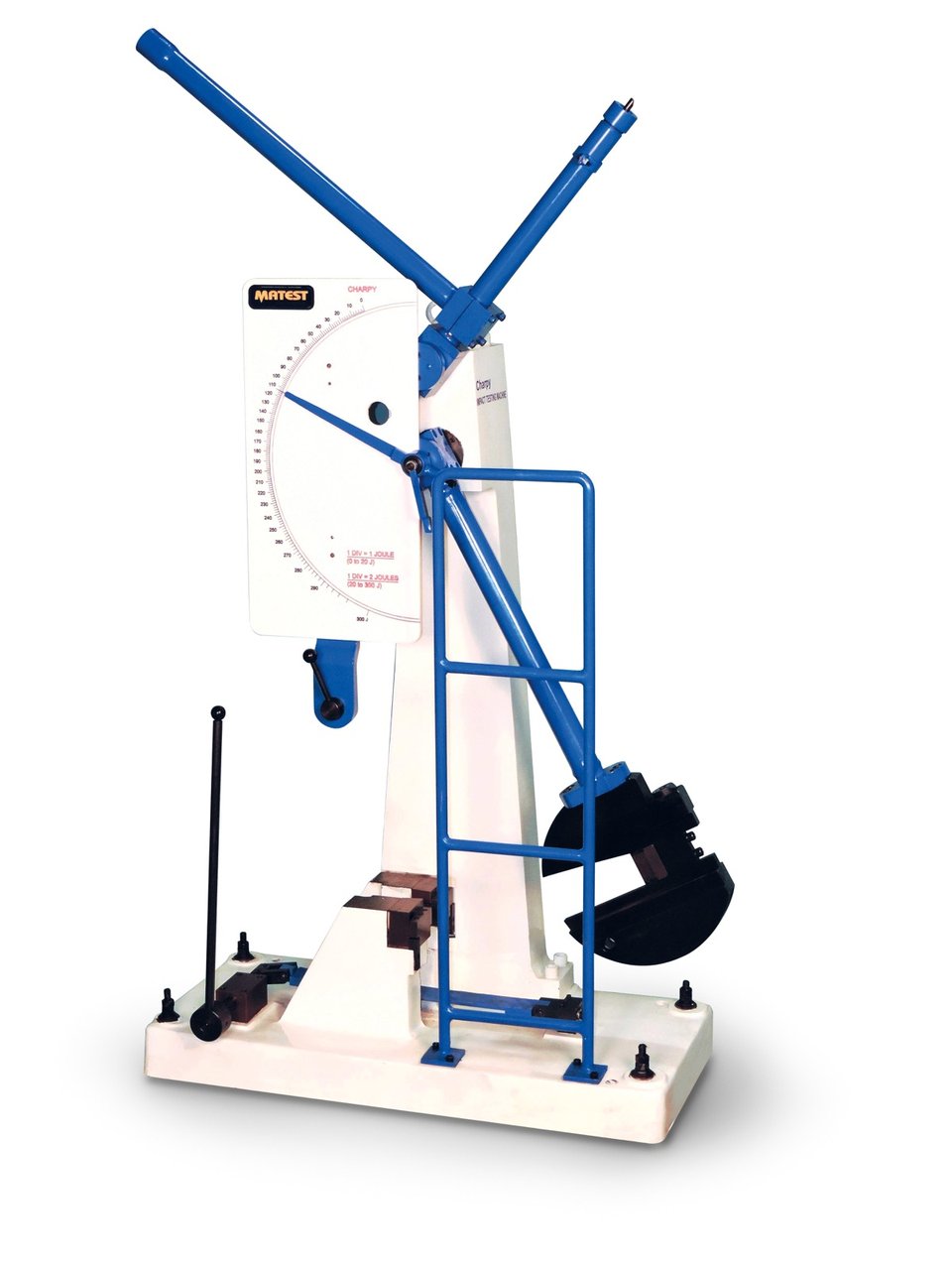

Notched-bar impact setup
The result is not only a number. The video, final scale, and fracture appearance all count as evidence, but use the scale direction only when the labeling is clear.
Why does an impact test use a notched specimen instead of a smooth bar? Explain in terms of stress concentration and fracture.
Which statement is scientifically safest?
2. Observe impact evidence
25 min
Use the Materials lab route for Notched bar impact test. Compare treatments of the same alloy when possible, because that makes the comparison about processing rather than completely different chemistry.

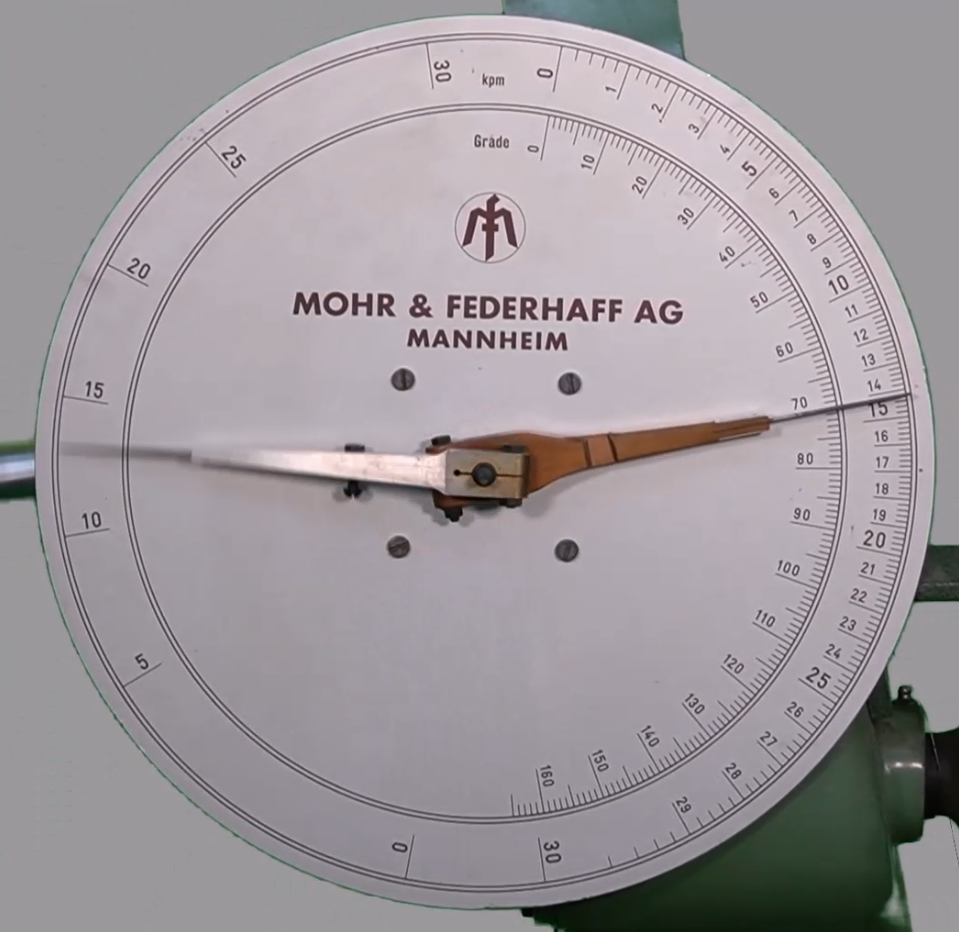

Impact result evidence
If a scale or value is visible, record it. If the important evidence is visual, describe it precisely and label the source.
Open Materials and run an impact test
Open Materials from this activity.
Choose Notched bar impact test.
Recommended comparison: steel / C45 with two different treatments, such as hardened and soft annealing.
Observe the impact video, final scale/result image, and fracture evidence.
Record one row for each specimen route.
If the lab provides repeated runs, keep repetitions separate instead of averaging first.
Notched-bar impact evidence
Use one row per specimen or repetition. If absorbed energy is visible, record the number and unit. If it is not visible, record the final scale/fracture observation and mark the value field as not visible.
| Material / alloy / treatment | Repetition | Absorbed energy if visible | Fracture observation | Video/scale evidence | Confidence and reason |
|---|---|---|---|---|---|
Which two rows form your fairest comparison, and why? Mention alloy, treatment, and evidence type.
3. Connect energy, fracture, and treatment
25 min
Using your impact evidence, which specimen appears tougher under this test? Use absorbed energy if visible, or use scale/fracture evidence if the numeric value is not visible.
Use fracture appearance cautiously. A flatter, shinier, cleavage-like surface can suggest more brittle behavior. A rougher or fibrous-looking surface, visible shear lips, or more deformation near the notch can suggest more ductile behavior. A low-resolution image supports only cautious wording.
Describe one fracture-surface feature you can observe. Does it suggest more brittle or more ductile behavior? Explain cautiously.
Why should you avoid claiming a complete ductile-brittle transition curve from this activity?
4. Impact-test conclusion
10 min
Write a short impact-test report paragraph. Include the comparison, the evidence for absorbed energy or fracture behavior, the toughness interpretation, and one limitation.
