Microstructure Analysis: controlled metallography images

Students use the Materials microstructure route to compare etched and non-etched images, section orientation, magnification, focus, and brightness, then connect microstructure observations to mechanical-property hypotheses.

  • Materials
  • 75 min
  • Introductory university
  • English
  • Mechanical engineering · Materials science & engineering
Try this lesson with your class Have a class code?

Sign in with an educator account to prepare a class session. Students join with a class code.

Materials microstructure observation screen with sample type, etched or non-etched treatment, magnification, focus, brightness, and microscope view.
Materials

Learning Outcomes

  • Explain why polishing, etching, section orientation, and magnification affect microstructure visibility.

  • Use Materials microstructure controls to compare images systematically.

  • Describe visible microstructure features without unsupported quantitative claims.

  • Connect microstructure observations to mechanical-property hypotheses.

  • State what extra evidence is needed to confirm a property claim.

More for this lab

Student activity preview

Activity Content

Preview only. In a class session, students can fill in responses and submit their work to the teacher.

1

1. Why microstructure needs preparation

12 min

Microstructure is the arrangement of grains, phases, inclusions, deformation features, and other small-scale structures inside a material. It helps explain why two pieces of metal with the same broad name can behave differently after processing.

In metallography, preparation matters:

  • Polishing reduces scratches so the surface can be observed.
  • Etching chemically changes contrast, often revealing grain boundaries or phases.
  • Section orientation matters because a lengthwise section and a cross-section can cut through features differently.
  • Magnification changes what scale of feature can be seen, but high magnification is not automatically better if focus or field of view is poor.

Keep two ideas separate. Viewing controls such as focus, brightness, magnification, and etching change what you can see; they do not change the material itself during this observation. Mechanical-property hypotheses should refer to material features such as grain size, visible regions or constituents, inclusions, deformation features, or treatment-related differences. For example, finer grains can raise yield strength, an independently identified hard constituent can raise hardness while reducing toughness, and elongated grains or inclusions can make behavior directional. A microstructure image alone does not confirm phase identity or chemical composition. Without supporting identification, describe only the shapes, boundaries, bands, spots, contrast, and distributions that are actually visible. Property links remain hypotheses until checked with tensile, hardness, or impact data.

Microstructure observation controls

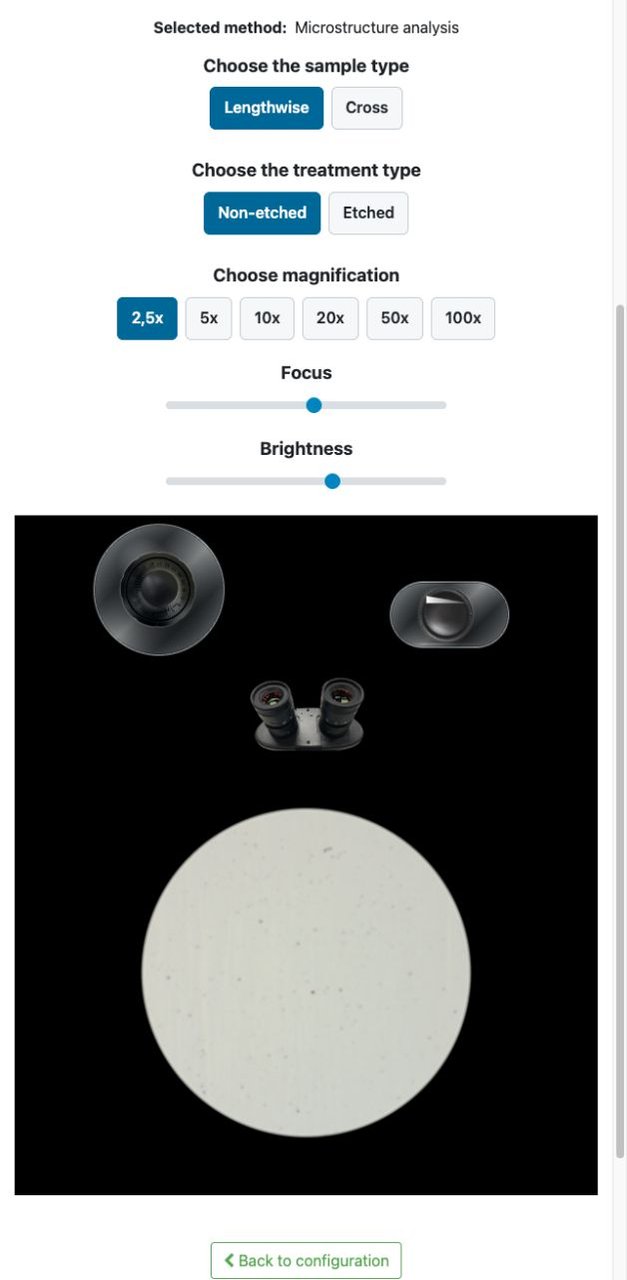

Materials microstructure observation screen with sample type, etched or non-etched treatment, magnification, focus, brightness, and microscope view.

The microstructure route is an image-observation task. The settings change the visibility of evidence, not the material itself.

Why might an etched metal sample show features that are difficult to see in a polished, non-etched sample?

Which statement is best for microscope work?

2

2. Compare microstructure images systematically

20 min

Use the Materials microstructure route. Start with one material/alloy/treatment, then change one viewing factor at a time.

Etched steel microstructure example

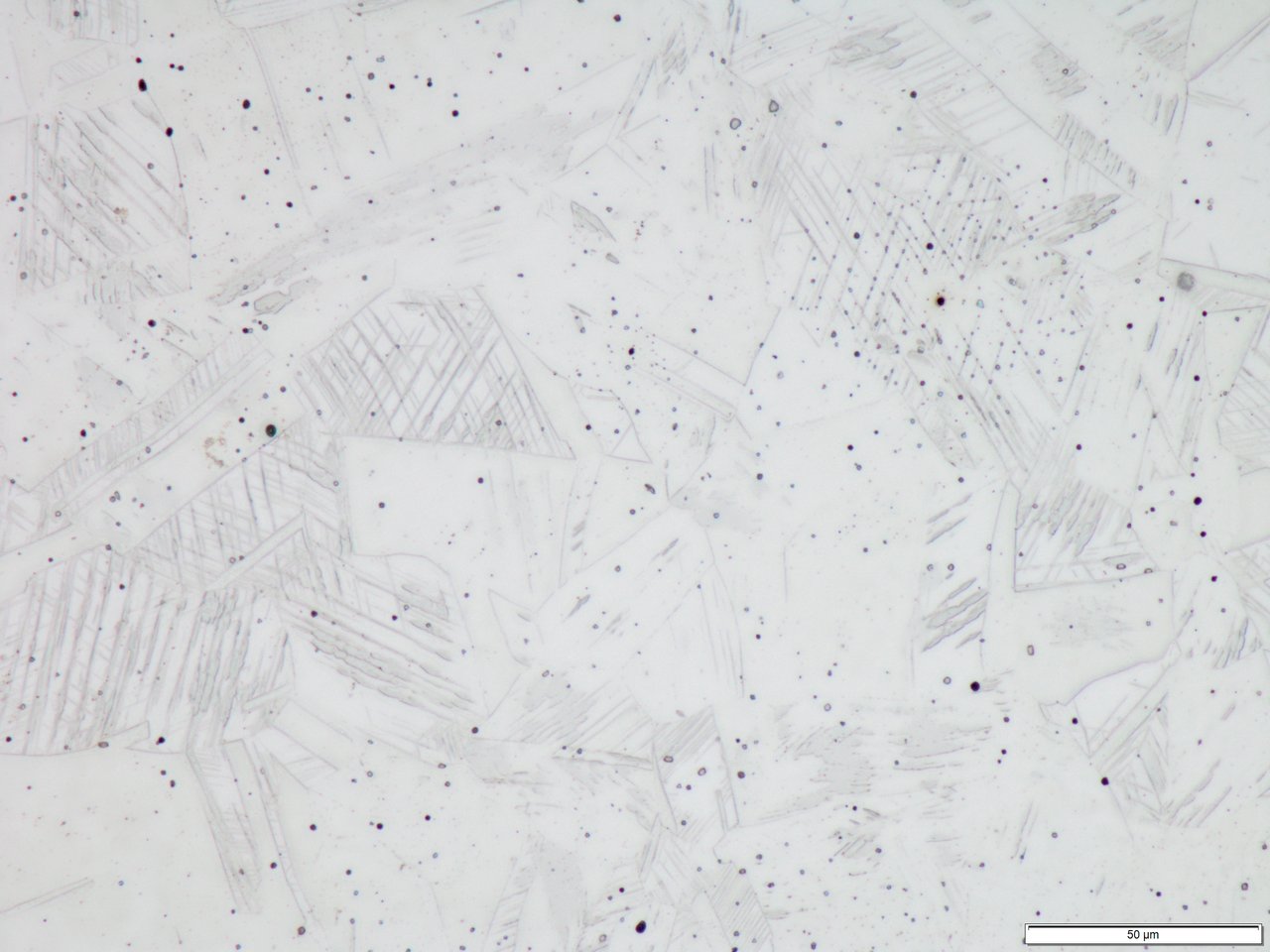

Micrograph associated with etched steel 1.4301 at 50x, showing pale irregular regions, several sets of fine parallel lines, scattered dark spots, and a 50 µm scale bar.

Do not report an exact grain size without a calibrated scale, a validated measurement method, and representative sampling. Describe visible features qualitatively.

Open Materials and observe microstructure

  1. Open Materials and select steel → 1.4301 → as delivered → Microstructure analysis.

  2. Record the first row at Cross → Etched → 50x. Adjust focus and brightness to see the features clearly.

  3. Keep the specimen, section and magnification fixed; change only to Non-etched. Record the second row. These first two rows are the required etching comparison.

  4. Return to Etched, keep 50x, change the section to Lengthwise, and record row three. Compare this row with row one, changing only orientation.

  5. Return to Cross → Etched, select 100x, and record row four. Compare this row with row one, changing only magnification.

  6. Etched and Non-etched select images prepared beforehand; you are not chemically etching a specimen remotely. Record only visible features, with an image-quality limitation.

Microstructure observation table

Use one row per image condition. Change one factor at a time when possible. Record qualitative features and image-quality notes; do not invent numeric grain sizes.

Material / alloy / treatment Section orientation Etched? Magnification Visible features Focus/brightness/quality note Interpretation limit

Choose two rows where only one viewing factor changed. What changed, what stayed the same, and what feature became easier or harder to see?

3

3. From image to hypothesis

20 min

Microstructure can suggest why a material behaves a certain way, but an image alone rarely proves a mechanical property. First separate changes in visibility from actual material features. Then connect a visible material feature to a cautious hypothesis and name the test that would confirm it.

Compare an etched and non-etched image of the same specimen and magnification. What did etching reveal or make clearer?

Write one hypothesis connecting a microstructure observation to a mechanical property. Then name which Materials test would be needed to check that property.

Why should you avoid reporting an exact grain size from this activity without a calibrated scale, a validated measurement method, and representative sampling?

4

4. Microstructure interpretation

8 min

Write a microstructure interpretation paragraph. Include the specimen route, two image conditions you compared, the most important visible difference, a property hypothesis, the extra lab test needed to confirm it, and one interpretation limit.

5

5. Optional ungraded oral discussion: test a second interpretation

15 min

With a partner or your teacher, choose one additional controlled image pair from your table. Discuss which visible feature supports a tentative interpretation, which alternative explanation remains possible, and what extra image, scale, or Materials test would help distinguish between the explanations. No written response is required. Do not identify a phase or composition from contrast alone.
