Electronics Lab Essentials (4/7): measure current without creating a short circuit
Students learn why an ammeter is inserted in series, predict and measure real DC current, convert A and mA, and apply a safe physical-meter sequence.
New to LabsLand? Create your teacher account
Learning Outcomes
Explain why an ammeter is inserted in series rather than placed across a supply.
Predict current using Ohm's law and an equivalent resistance.
Convert correctly between amperes and milliamperes.
Apply the physical-meter sequence of power off, socket/mode/range selection, series insertion, and cautious power-up.
Student activity preview
Activity Content
Preview only. In a class session, students can fill in responses and submit their work to the teacher.
1 · Why current is the dangerous meter mistake
6 min
Voltage is measured between two existing nodes. Current is different: it is the
rate of charge flow through a path. To measure that flow, an ammeter becomes
part of the path.
This difference creates one of the most important first-lab safety rules. A
current input has very low resistance. Placing it directly across a power supply
can create a near-short circuit, blow the meter fuse, damage leads, or stress the
supply. In this lesson, Hive provides a safely prewired path. Physical-meter
handling appears only as optional theory for a future supervised lab; no
physical equipment is required.

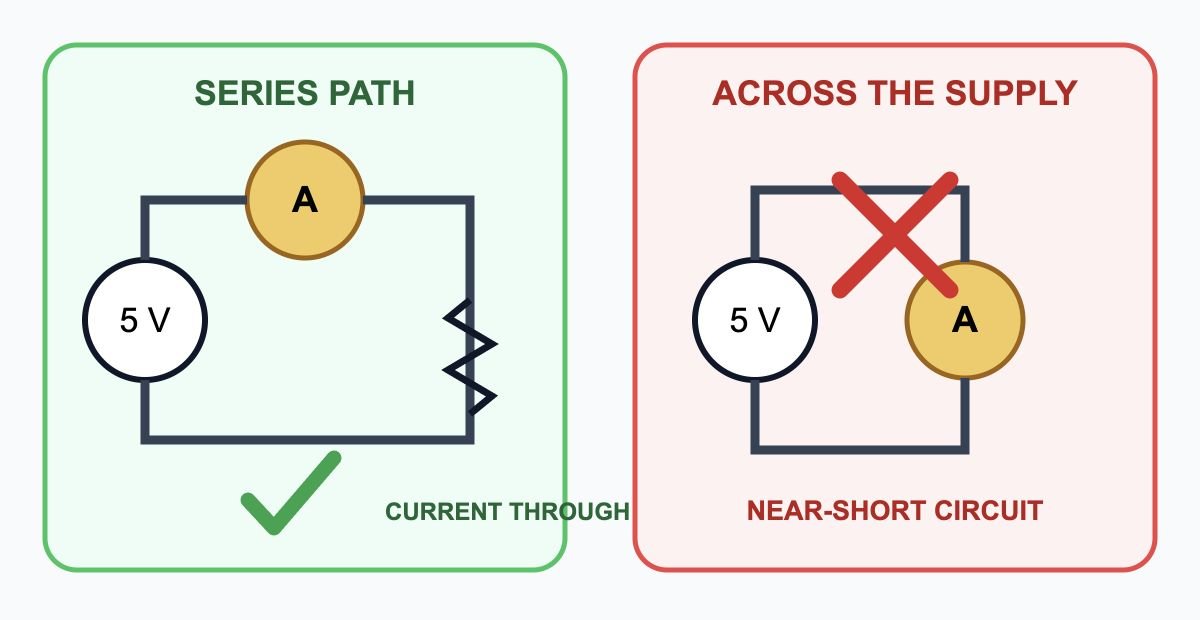

An ammeter belongs in the path
In the safe setup, the same branch current passes through the resistor and meter.
In the unsafe setup, the low-resistance current input is almost directly across
the source.
In a hypothetical future physical lab, what must you normally do to measure the
current through a resistor branch?
2 · Predict the current before selecting a range
7 min
A prediction protects both equipment and reasoning. It tells you whether to
expect amperes, milliamperes, or microamperes and helps you recognize a reading
that is one thousand times too large.
The prepared Hive network uses a 5.0 V source and an approximate equivalent
resistance of 1950 Ω. Ohm's law gives:
Predicted current
I=\frac{V}{R}=\frac{5.0\,\text{V}}{1950\,\Omega}\approx0.00256\,\text{A}=2.56\,\text{mA}
Remember:
- 1 A = 1000 mA
- 1 mA = 0.001 A
- 2.5 mA = 0.0025 A, not 2.5 A

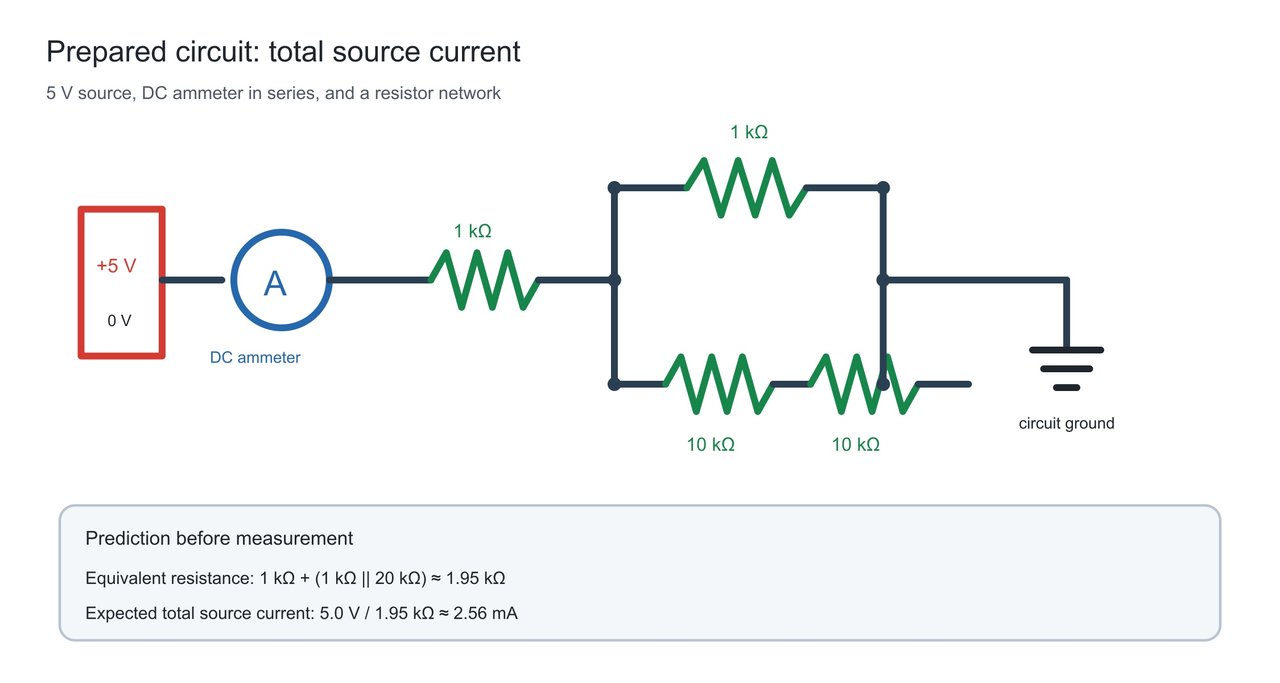

Prepared total-current measurement
The ammeter is already inserted in the source path. The current it displays is
the total source current supplied to this resistor network, before that
current divides between the parallel branches. The lower two 10 kΩ resistors
form 20 kΩ; therefore 1 kΩ || 20 kΩ ≈ 0.952 kΩ, and the series total is
approximately 1.95 kΩ.
Calculate the expected current. Enter the result in milliamperes, then show the
substitution and conversion from amperes.
Optional theory: physical-meter sequence
No physical meter is required in this lesson. For later supervised work, with
power off, move the red lead to the current socket required by the expected
range, keep the black lead in COM, and select DC current. Before energizing,
check the socket's current rating, fuse, maximum measurement time, and the
meter's category/voltage limits in the manual. If the current is uncertain,
start with the manufacturer-approved high-current input and range—not a socket
whose rating the prediction could exceed. Open the path and insert the meter in
series, then use the supply current limit and display as additional safeguards.
Never exceed the markings or time limit. When finished, power off and return the
red lead to the voltage/resistance socket so the next user does not accidentally
short a source.
3 · Measure the real total source current
10 min
Hive opens the current path already wired. Do not change the meter mode or wires:
the learning goal is to obtain and interpret a safe current reading.
Measure the Ohm's law A current
Open Hive from this block and wait for the complete circuit to appear.
Compare the breadboard path with the simplified circuit figure.
Open the Multimeter and confirm DC current mode (
Corriente CCor equivalent in a Spanish interface).Do not switch to voltage mode and do not move the current wires.
Select Perform Measurement (
Realizar medición) once and wait for the real hardware result.Copy the number and unit exactly as displayed, then convert it to the other current unit in the table.
Complete one row. If Hive displays amperes, convert to milliamperes by multiplying
by 1000. If it displays milliamperes, convert to amperes by dividing by 1000.
Format-only example: `0.00254 | A | 0.00254 A | 2.54 mA | 2.56 mA |
0.02 mA`.
Replace the displayed value and calculated difference with your own result.
Leave extra blank rows unused.
Current measurement record
Complete one row after the Hive measurement. Record the displayed number and unit, both A and mA forms, predicted current, and the absolute difference in mA.
| Displayed number | Displayed unit | Current A | Current mA | Predicted current mA | Absolute difference mA |
|---|---|---|---|---|---|
Compare the real current with your prediction. State both values in the same
unit, describe the difference as small or large relative to about 2.56 mA, and
give one reason exact agreement is not expected.
4 · Optional theory: leave a physical meter safe
7 min
No physical meter or battery is required. This is a future-lab sequence:
a current measurement changes the circuit and often changes the physical meter
socket.
1. Estimate the expected maximum current; compare it with the selected socket, fuse, range, and permitted measurement time in the meter manual.
2. Power off.
3. Put black in COM and red in the correct current socket.
4. Select AC or DC current to match the circuit.
5. Open the intended branch and insert the meter in series.
6. Inspect the path, enable power, and read the value with its unit.
7. Power off before removing the meter.
8. Return the red lead to the voltage/resistance socket.
Which actions would reduce the risk of a hypothetical physical current
measurement? Select all that apply.
In a hypothetical future lab, a classmate says, “The meter fuse blew when I
tried to measure a battery's current.” Explain the likely connection mistake,
the immediate safe action, and how the corrected measurement would be arranged
with a load.
