Electronics Lab Essentials (1/7): read a breadboard before wiring
Students learn how breadboard holes form electrical nodes, trace a complete path, and confirm their interpretation with a real Hive resistance measurement.
New to LabsLand? Create your teacher account
Learning Outcomes
Define an electrical node and identify connected breadboard holes.
Explain why the center trench separates the two terminal strips.
Trace a complete path through two resistors and two meter connections.
Use an unpowered resistance measurement to check a breadboard interpretation.
Student activity preview
Activity Content
Preview only. In a class session, students can fill in responses and submit their work to the teacher.
1 · The hidden circuit under the holes
6 min
On a breadboard, the conducting metal is hidden underneath the plastic. That
creates a useful puzzle: two leads that look close may be electrically separate,
while two holes with visible space between them may already be connected.
This matters before the first power-up. A mistaken node can leave a circuit open,
bypass a component, or connect power directly to ground. Today you will learn to
read that hidden map, then check your interpretation with a real resistance
measurement from Hive. Everything needed is explained here; no earlier lesson is
required.

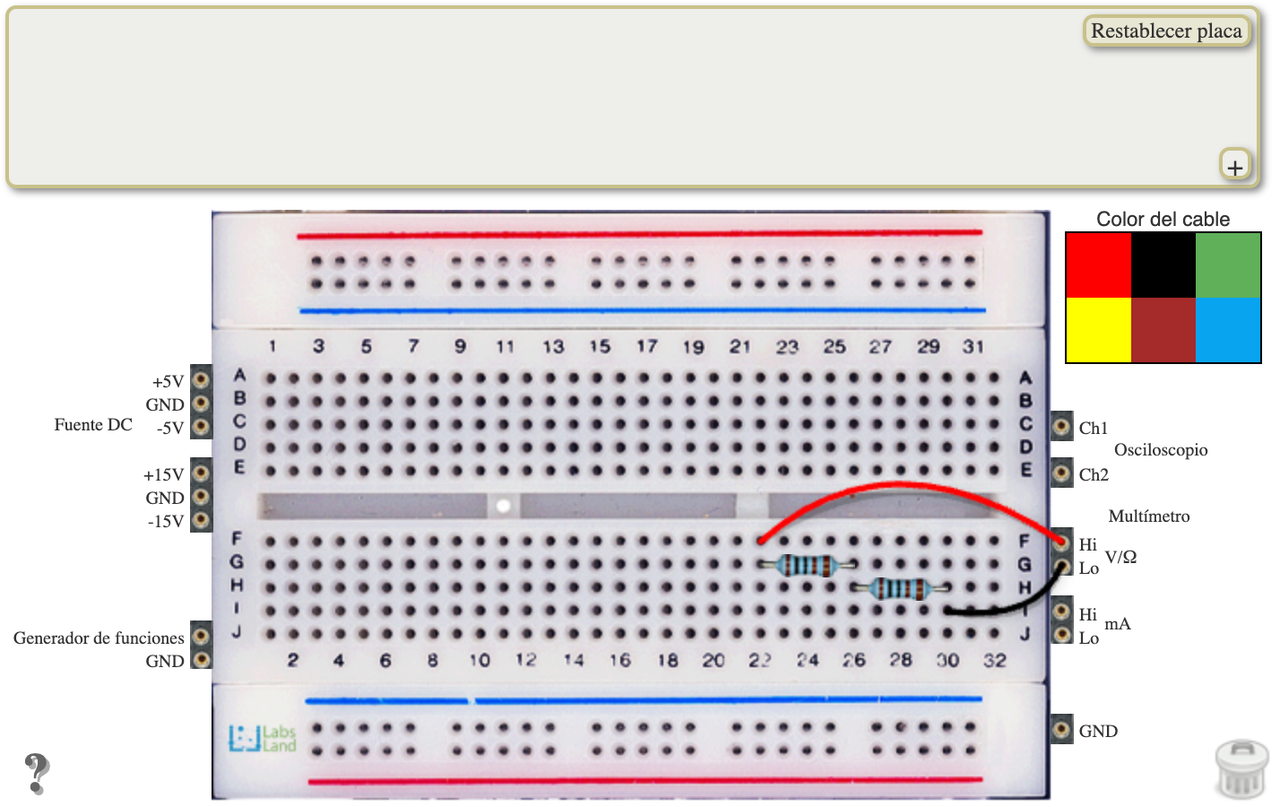

The breadboard used by Hive
The two resistors and DMM wires are visible on the lower terminal strip. Use the
row letters and printed numbers to trace their electrical path; the node diagram
in the next section shows which holes are connected underneath.
Two component leads are inserted into different holes that belong to the same
internal metal strip. What is true before any extra wire is added?
2 · Read the node map
7 min
An electrical node is a set of points joined by conducting material. Ideal
wires and breadboard clips make every point on one node approximately the same
voltage.
On the Hive terminal area shown below:
- The upper strip uses row letters A–E and odd printed numbers. For example, A5, B5, C5, D5, and E5 are one connected node.
- The lower strip uses row letters F–J and even printed numbers. The aligned group F6–J6 is a different node from A5–E5.
- The center trench isolates the upper and lower halves. Integrated circuits often straddle this trench so opposite pins do not short together.
- Red and blue power rails run along the edges. Their color is a convention, not a guarantee: you decide what voltage each rail carries.
- Some physical breadboards split long rails in the middle. Always inspect the printed markings or test continuity instead of assuming the whole rail is one node.

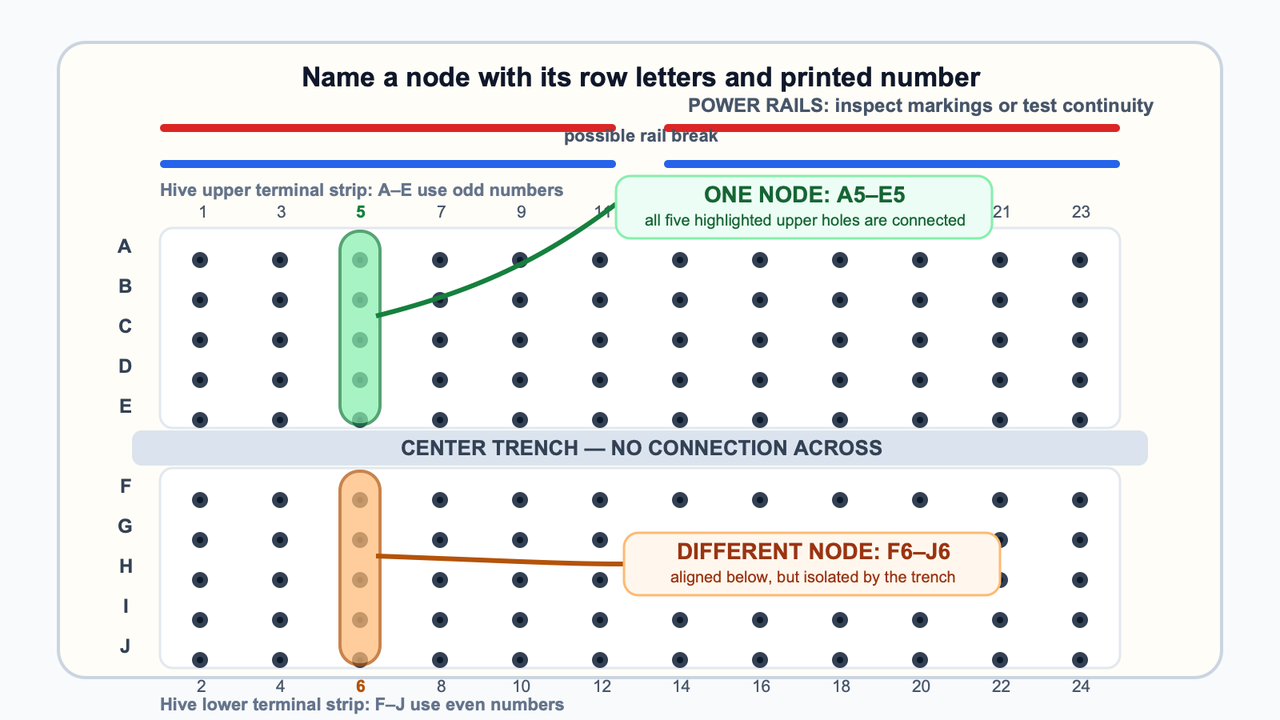

What is connected underneath
Name a hole by its row letter and printed number. The green group A5–E5 is one
node; the orange group F6–J6 is a different node even though it is visually
aligned below it.
A resistor has both leads inserted into two holes of the same five-hole
group. What has the breadboard done to that resistor?
For this lesson, a path name is simply an ordered list of the electrical
landmarks you encounter. Starting at the DMM HI connection, call the first
resistor R1, call the shared junction the middle node, and call the second
resistor R2. You may write the same path in reverse. Hole coordinates are not
required.
Write the complete resistance-test path from one DMM connection to the other.
Include both resistors and the shared middle node.
3 · Test the hidden path with real hardware
10 min
The saved Hive circuit contains two 1 kΩ resistors connected end-to-end. This
is called a series connection: the measurement path passes through one
resistor and then the other. For an introductory prediction, series resistances
add:
Series resistance prediction
R_{eq}=1\,\text{k}\Omega+1\,\text{k}\Omega=2\,\text{k}\Omega
The DMM is already wired and set to resistance mode. The measured network is not
powered; a physical ohmmeter supplies its own small test signal. Never apply an
external supply while measuring resistance unless the instrument and procedure
explicitly require it.
Open the breadboard path in Hive
Open Hive from this lab block and wait for the saved circuit to appear.
Locate the two
1 kΩresistors and the two DMM wires. Do not move them.Starting at one DMM connection, trace the breadboard nodes through the first resistor, the shared middle node, the second resistor, and the other DMM connection.
Open the Multimeter instrument. Confirm that the selected function is resistance (
Ω).Select Perform Measurement (
Realizar mediciónif the interface is in Spanish) once and wait for the result.Record the displayed value and its unit. A reading near
2 kΩsupports the traced path; the final digits may vary slightly on real hardware.
Complete exactly one row. In Path traced, reuse the ordered name defined
above: DMM HI → R1 → middle node → R2 → DMM LO (the reverse order is also
correct). In Measured resistance, copy only the number from the DMM; select
its displayed unit separately.
Format-only example: if a meter happened to display 2.02 kΩ, the row would
read DMM HI → R1 → middle node → R2 → DMM LO | 2.02 | kΩ | yes. Replace the
example number with your own Hive result. Leave extra blank rows unused.
Breadboard path check
Complete one row after the Hive measurement. Record the path in words, the measured number, the unit shown by the DMM, and whether it is close to the 2 kΩ prediction.
| Path traced | Measured resistance | Displayed unit | Close to 2 kΩ? |
|---|---|---|---|
Explain how the measured result provides evidence about the hidden breadboard
connections. Cite your own value and reuse the same ordered path name from the
table.
4 · Optional theory: a future physical breadboard
7 min
No physical breadboard or equipment is required for this lesson. This final
section is theory for a later supervised laboratory. If you eventually wire a
physical breadboard, use this sequence:
1. Identify the nodes required by the schematic.
2. Map each node to one connected breadboard group.
3. Check that every two-terminal component spans two different nodes.
4. Trace at least one complete current or measurement path with the power off.
5. Check rail breaks and polarity markings instead of trusting color alone.
6. Only then connect power.
Which checks should happen before first power-up? Select all that apply.
In a hypothetical future lab, imagine a circuit does nothing after power-up.
Using only the theory above, describe one breadboard-node mistake that could
cause the failure and one power-off check you would perform before moving any
component.
