Teach lesson
Titration: endpoint, stoichiometry, and uncertainty
Students use the Acid-Base Titration remote lab to estimate an endpoint, calculate an unknown citric-acid concentration, and justify uncertainty from real pH-volume data.
Learning Outcomes
Identify titrant, analyte, indicator, endpoint, and equivalence-point evidence in a titration.
Use the remote lab to collect or cite pH-volume rows around the endpoint.
Choose an endpoint volume from indicator and pH-curve evidence.
Calculate the concentration of an unknown citric-acid solution using the high-school guide model.
Explain uncertainty in the endpoint choice and final concentration.
Write a claim that includes method, evidence, calculation, units, and limitations.
Student activity preview
Activity Content
Preview only. In a class session, students can fill in responses and submit their work to the teacher.
Frame the titration model
8 min
In this remote lab, a known sodium hydroxide solution is added drop by drop to an unknown citric-acid solution. Phenolphthalein is the indicator: it is colorless in acidic solution and turns pink in the basic range. The pH sensor and volume readout give a second way to judge where the endpoint occurs.
The goal is not just to calculate a number. Your job is to decide which endpoint volume is justified by the evidence, then use that volume carefully.

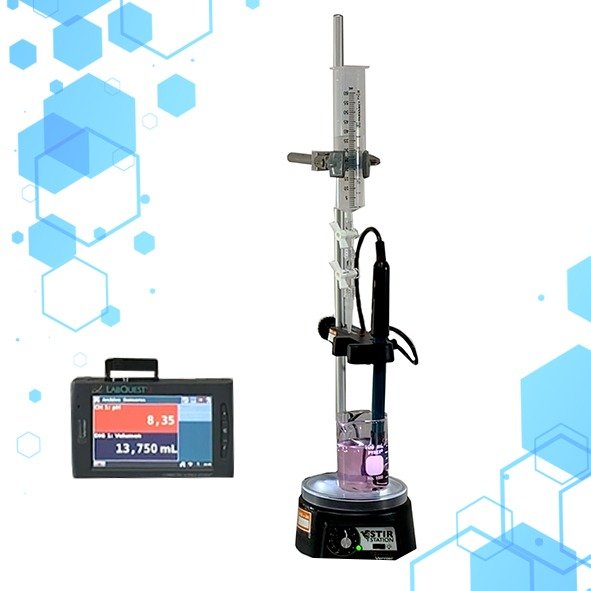

Acid-base titration remote lab
The lab records pH and volume as sodium hydroxide is added to the acid sample.

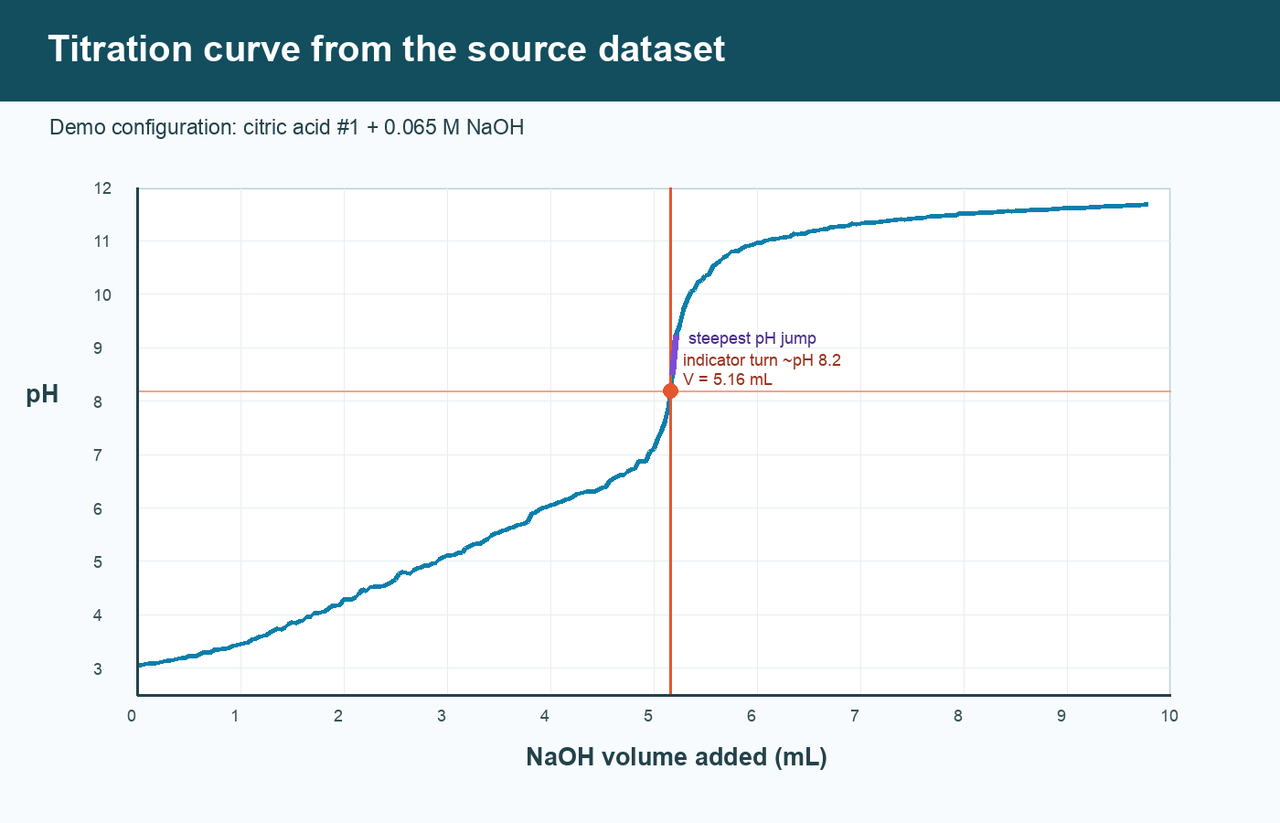

Reference pH curve
The demo-supported reference curve changes rapidly near 5.16-5.20 mL. Your own table should focus on rows around that jump.
In this lab, what is the titrant?
What does phenolphthalein help you detect in this titration?
Before opening the lab, predict the shape of the pH curve as NaOH is added. Include what should happen before, near, and after the endpoint.
Plan an endpoint decision
8 min
The lab does not simply announce the correct endpoint. You must decide it from the color endpoint, the pH curve, and the rows around the rapid change. A defensible endpoint is better than a falsely precise one.

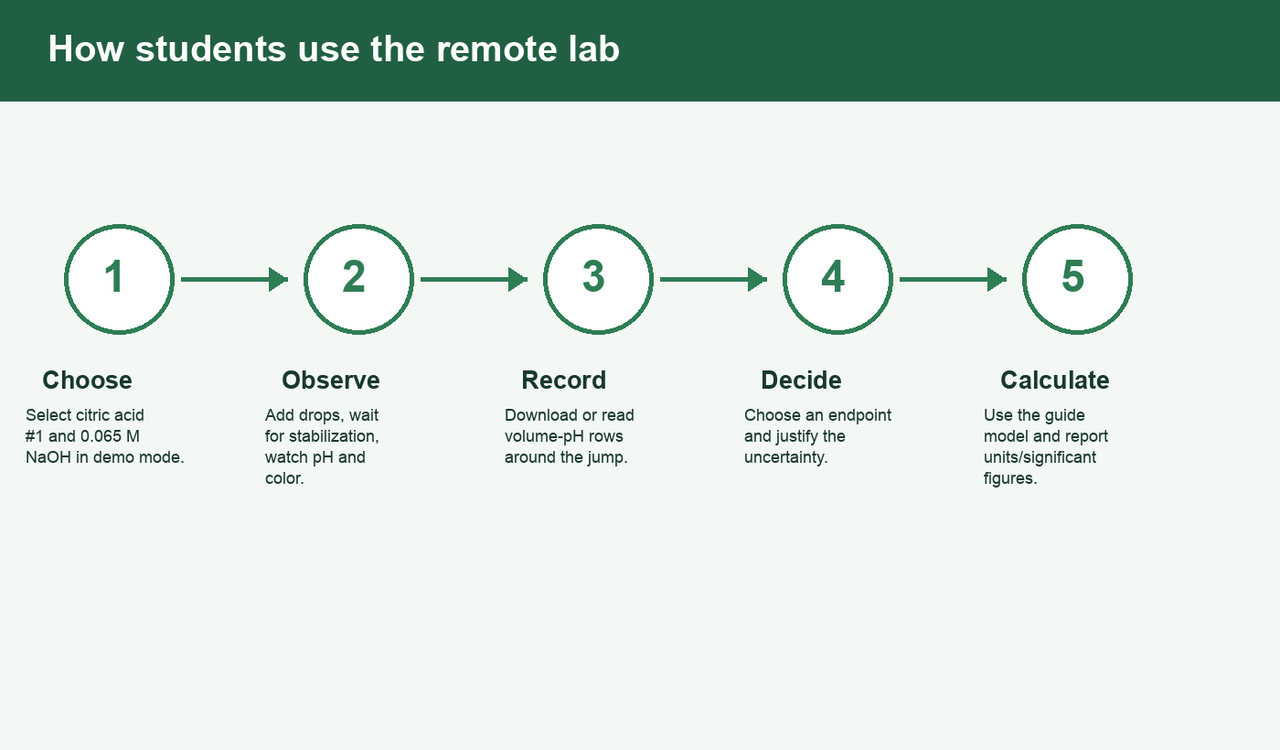

Remote lab workflow
Use the same solution/titrant setting throughout one run. Demo mode normally permits citric acid #1 with 0.065 M NaOH.
Which endpoint decision is most defensible?
Write a 3-5 sentence plan. Include the solution and titrant you will use, which rows you will record near the jump, how you will handle demo limits, and how you will decide the endpoint volume.
Collect and organize evidence
24 min
Open the lab, select the assigned unknown citric-acid sample and sodium hydroxide titrant, and add drops until the endpoint region is visible. Record rows before, during, and after the rapid pH change. If access is demo-limited or time is short, use the teacher-provided reference rows and label them honestly.
Open the Acid-Base Titration lab
Choose
citrico#1and0.065M_NaOHunless your teacher assigns another available unknown.Start the run and observe the initial acidic pH.
Add drops and wait for each stabilized reading.
Record NaOH volume and pH, especially near the color change and rapid pH jump.
If a download button is available, download the spreadsheet and check the rows near the jump.
Mark whether each row comes from your live run, a classmate, or a teacher-provided reference row.
Titration pH-volume evidence
Record at least nine rows, including rows before and after the rapid pH change. Use mL for NaOH volume and mark the source of each row.
| NaOH volume mL | pH | Color / signal | Run/source | Endpoint note |
|---|---|---|---|---|
pH curve or graph evidence
Attach or reference a pH-versus-volume graph, spreadsheet, or teacher-checked graph summary. If your evidence is a screenshot, attach it as an image reference rather than as a file upload.
Estimate endpoint and concentration
12 min
The reference endpoint is around 5.16-5.20 mL for citric acid #1 with 0.065 M NaOH. You may choose a value in that region if your evidence supports it. Your explanation matters as much as the number.

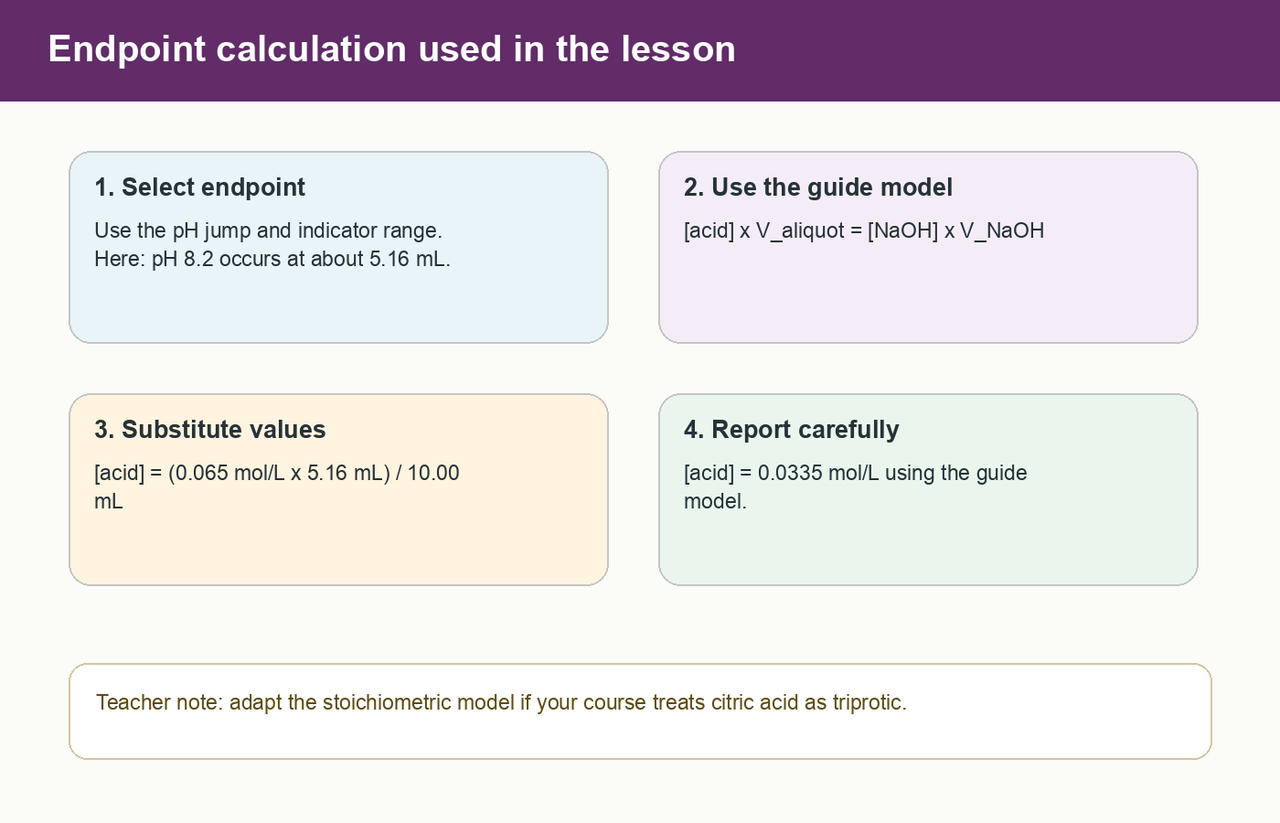

Endpoint calculation model
The published high-school guide uses a simplified model. Your teacher may adapt the stoichiometry for an advanced course.
High-school guide model
[\text{Ac Citr}]\,V_{\text{aliquot}}=[\text{NaOH}]\,V_{\text{NaOH}}
Which row region best supports the endpoint choice for the demo-supported run?
Estimate the endpoint volume in mL from the pH/color evidence. Enter a value in mL, then explain which rows or graph feature support it.
Use [Ac Citr] * V_aliquot = [NaOH] * V_NaOH with V_aliquot = 10.00 mL, [NaOH] = 0.065 M, and your endpoint volume. Enter the citric-acid concentration in mol/L, then show the substitution.
Make and qualify the claim
8 min
Your final answer should sound like a careful chemist: clear method, measured endpoint, calculation, units, and uncertainty.
Name two sources of uncertainty in this titration and explain how each could affect the endpoint volume or calculated concentration.
Write your final claim. Include: (1) the endpoint volume you chose, (2) the calculated citric-acid concentration with units, (3) at least two pieces of evidence from the table or graph, and (4) one limitation or uncertainty.
Optional extension
15 min
Use this only if your teacher assigns the longer version.
The activity guide describes using the first derivative, Delta pH / Delta V, to estimate the equivalence point. How would this method use your table, and why might it be more precise than only watching the color change?
