Teach lesson
Microscope: zoom, focus, and cell evidence
Students use the Microscope (Direct) lab to observe one real sample at several zoom levels, adjust focus and lighting, choose visible evidence, and explain a cell identification without inventing unsupported measurements.
Learning Outcomes
Use the Microscope (Direct) lab in cell-sample mode to observe one real sample at several objective zoom levels.
Explain why 4x, 10x, 40x, and 100x are useful for different observation goals.
Recognize that sample preparation affects visibility and confidence in the observation.
Record visible features, usefulness of each view, and limitations in a short evidence table.
Separate observation, inference, and uncertainty when identifying a cell sample.
Explain a CER conclusion without using unchecked samples or unverified measurements.
Use plant-animal comparison images as reference support, and observe a real plant sample only as a teacher-guided extension.
Student activity preview
Activity Content
Preview only. In a class session, students can fill in responses and submit their work to the teacher.
Observation is more than making it bigger
7 min
A microscope does not automatically give a correct answer. To make your observations useful, you need to choose the sample carefully, adjust zoom, focus, light, and interpret what you see with care.
In this activity you will use Microscope (Direct) with one specific setup: cell-sample mode, the cheek epithelial sample, sample number 1, and zoom levels 4x, 10x, 40x, and 100x. That is the only sample you will observe in the lab. Later, comparison images will help you interpret your evidence.
The cheek epithelial sample contains thin surface cells from inside the cheek. Even though you know the sample name, your answer must be backed by visible features from your table. Do not use the sample name as your evidence: describe what you actually see.
For a 45-minute session, answer only the required questions unless your teacher tells you otherwise.
Key terms for this activity:
- Zoom: how much the objective lens magnifies the image. In the lab you will use 4x, 10x, 40x, and 100x.
- Field of view: the part of the sample that fits in the image. When zoom increases, you usually see a smaller area at once.
- Focus: the adjustment that makes edges and details look sharp.
- Lighting: the amount of light. Too much or too little light can hide features.
- Sample preparation: steps for placing or treating a sample before observation. Good preparation helps cells become visible; poor preparation can add bubbles, dirt, weak staining, or unclear regions.
- Evidence: features you can point to in the image. The sample name can guide you, but it does not replace describing what you see.
- Inference: an interpretation you make from evidence. For example, a visible shape or an absent structure can support an interpretation, but you still need to say what you saw and what you could not confirm.
Which statement is the best way to think about microscope zoom?
Complete this question only if your teacher asks for it: before opening the lab, write one short sentence with one advantage and one possible problem of using 100x instead of 4x.
Open the lab and prepare the observation
10 min
You are working with real evidence. Today, focus on careful observation and explaining the sample with visible features, not on inventing a scale or measuring exact cell sizes.
Preparation is part of observation. It helps the sample be placed or treated so light can pass through and visible features can be seen clearly. In this lab, preparation can differ by sample type, so this activity uses only the cheek epithelial sample. Your task is to record which preparation step appears and what it may change in the image, not to memorize every possible procedure.
Use this setup: cell-sample mode (the option for prepared biological samples) -> cheek epithelial -> sample 1 -> 4x, 10x, 40x, and 100x. Set or confirm those steps, follow the lab screen until you reach observation, and record what happened before the first view.

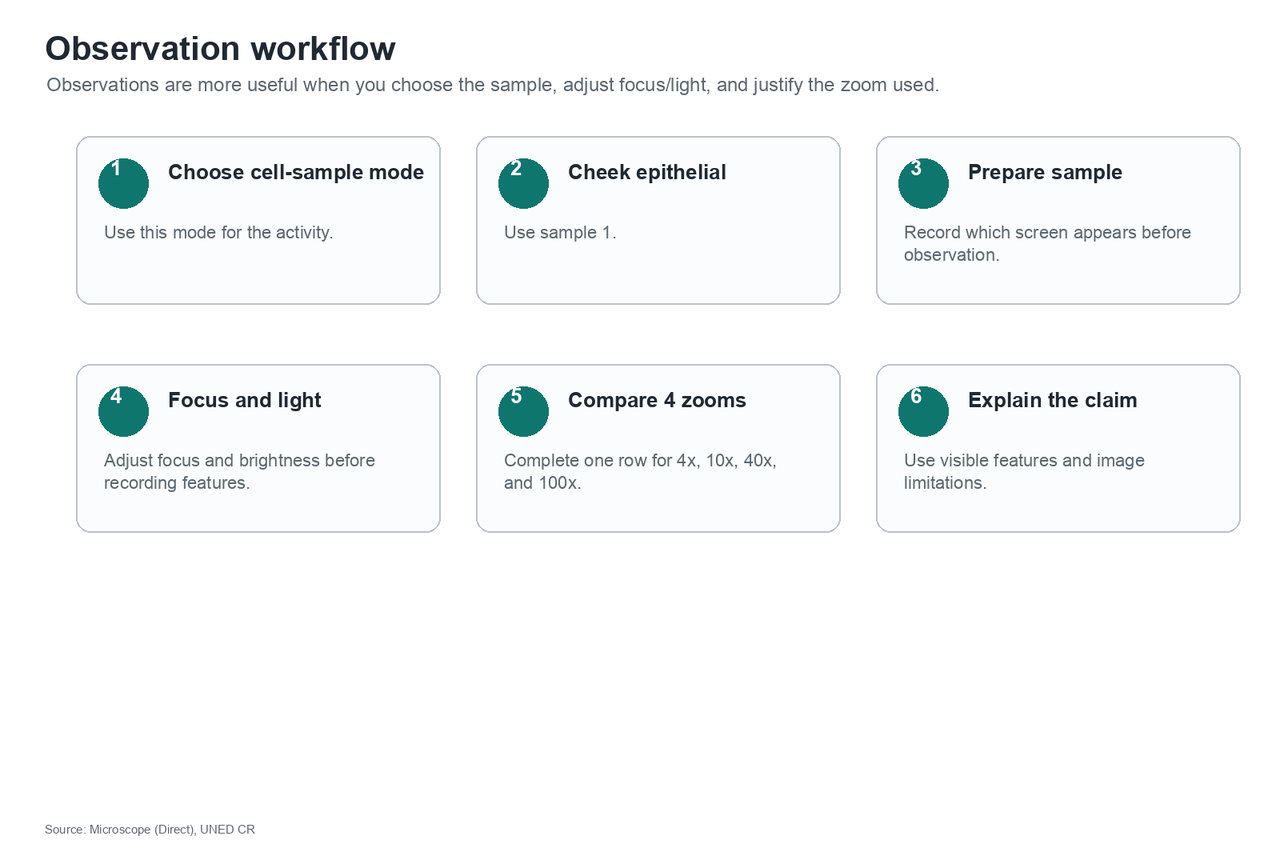

Observation workflow
Follow those steps in order and complete one table row for each zoom level.

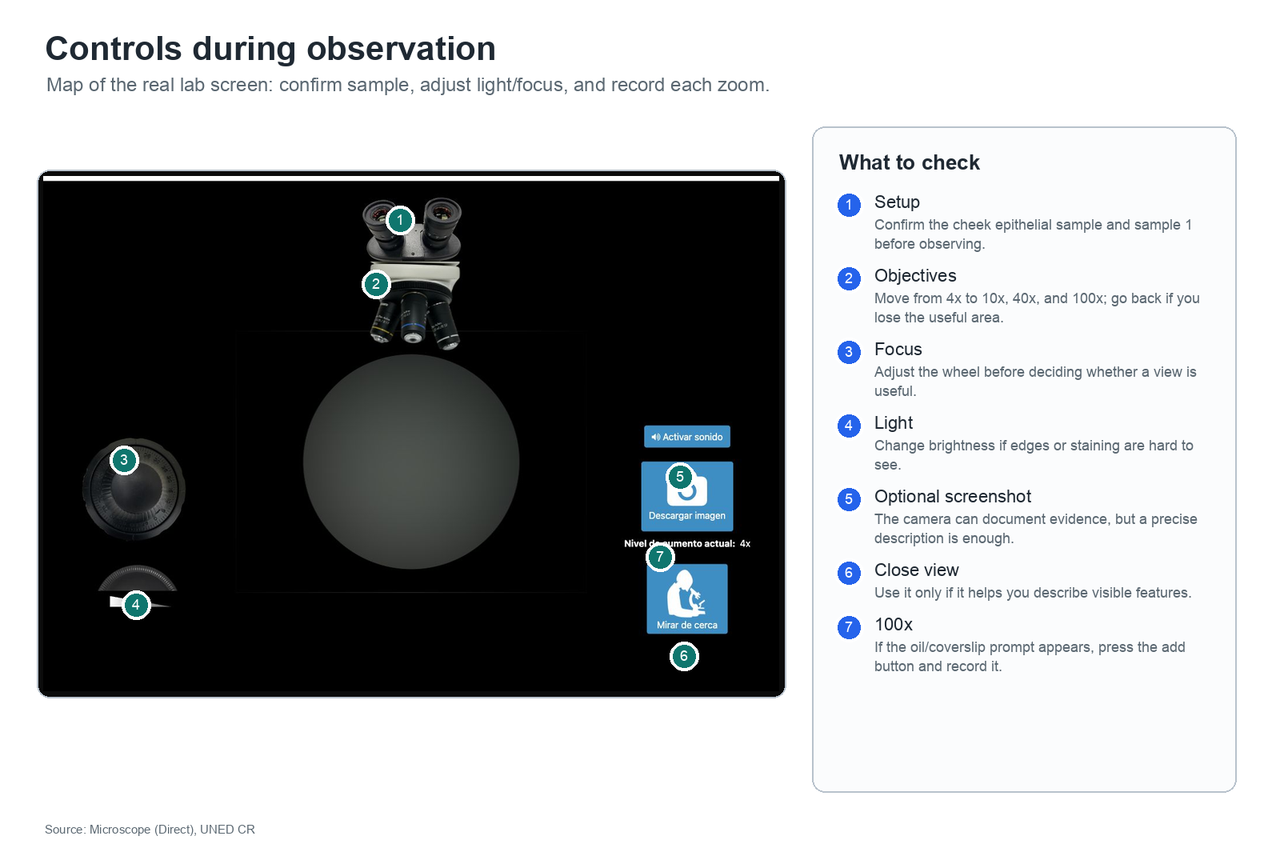

Lab controls
Use the screenshot as a map of the controls. Some button text in the real lab may appear in Spanish; the numbered labels explain what each control does. In the real observation, adjust focus and brightness before writing each row.
Open Microscope (Direct)
Open the lab from TEACH.
Set or confirm cell-sample mode for this activity.
Choose the cheek epithelial sample and use sample number 1.
At the preparation screen, if it appears, follow the steps until you reach observation and record what happened before the first view. If no preparation screen appears, write "no prompt appeared" and continue.
Start at 4x. Adjust focus and brightness before writing visible features.
Move through 10x and 40x. At each zoom, record what becomes clearer and what is lost.
Before using 100x, the lab may ask you to add oil or a coverslip. You do not manipulate anything physical: if this message appears, press
Add/Añadirand write it in your notes. If no prompt appears, write "no prompt appeared" and continue with 100x.Observe at 100x and describe what you see precisely. If you lose the area where cells are clear enough or cannot focus, go back to 40x to re-orient and then try 100x again. Do not spend more than 2-3 minutes trying to get a perfect 100x view: if it does not work, record the limitation. A screenshot can help, but a precise description is enough.
Which lab setup should you use in this activity?
Describe what preparation or prompt appeared during the activity: before the first view or before using 100x. You can choose one option and add one sentence: a preparation screen appeared and I followed its steps; an oil/coverslip prompt appeared and I pressed Add / Añadir; no preparation prompt appeared; I am not sure. Briefly explain why this can affect what you see.
Collect evidence at several zoom levels
14 min
Complete four rows, one per zoom level. In each row, separate what you see from what you infer. It is better to describe colors, shapes, edges, and sharpness than to write only "animal" with no evidence. If 100x is blurry or shows very little field of view, record that: an honest limitation is also useful evidence.
Quick guide for the table:
- Visible features: shapes, colors, edges, or structures you can see.
- How this view helps: whether it helps locate the sample, see edges, compare structures, or recognize a limitation.
- Limitation: the problem with that view: blur, low light, small field of view, missing scale, or what happened before observation.
Write short notes: one visible observation and one limitation per cell are enough.
Example level of detail: at 10x you might write "still broad field; several pink cell areas; medium evidence because it locates the sample, but internal detail is limited".

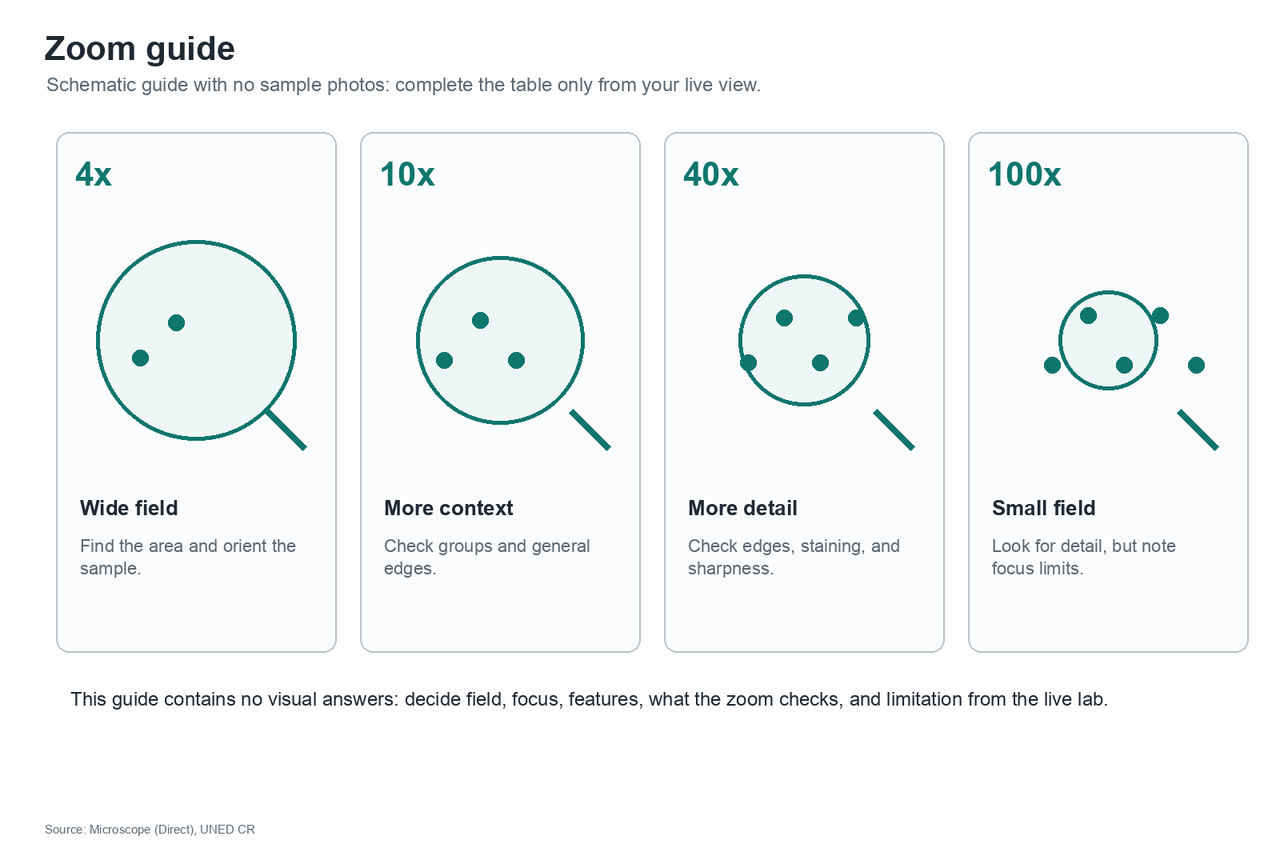

Zoom guide
The figure only reminds you what usually changes when zoom increases. It does not contain answers about this sample: use the live lab view to complete the table.
Sample and zoom evidence
Complete one row each for 4x, 10x, 40x, and 100x. Write visible observations and one limitation of each view.
| Zoom | What I see | How this view helps | One problem with this view |
|---|---|---|---|
Evidence screenshot or description
Complete this only if your teacher asks for it: attach a screenshot or write a precise description of the best view you used for identification. Include sample, zoom, and one limitation.
Justify the classification with visible evidence
8 min
Before looking at the comparison, return to your table and choose two features you observed in the lab. The sample name is not enough: first make clear what you saw.
Select the TWO observations that, if they are in your table, best help classify the sample. Select only options you really observed; do not use the sample name as evidence.
Now compare your observations with these reference images. The task is not to copy the figure, but to decide which features from your table do or do not resemble the examples.
Plant-animal comparison
Compare shape, color, and visible structures. Use only features you can connect to your own table; if a structure is not clear, state that as a limit of your evidence.
Complete this question only if your teacher asks for it: write a provisional identification in one or two sentences. Cite one visible feature and one uncertainty or image limit.
Complete this question only if your teacher asks for it: if you had to show one view to another student, would you use 10x, 40x, or 100x? Answer in one or two sentences: balance detail, field of view, and focus, and mention how 4x or 10x helped you find an area where cells were clear enough.
CER conclusion: claim, evidence, reasoning, limitation
6 min
Your conclusion should help a teacher see what you observed, how you interpreted it, and what doubts remain.
Write a short CER conclusion. In this activity, use CER as claim, evidence, reasoning, and limitation:
- Claim: how you classify the sample using visible evidence: plant, animal, or not clear yet.
- Evidence: two pieces of evidence from your table, preferably from two different zoom levels.
- Reasoning: why that evidence supports the classification and which zoom was most useful.
- Limitation: one limit of your evidence: focus, lighting, field of view, missing scale, or sample preparation.
You can use this frame: "The observed sample seems to support a ___ classification. My evidence is ___ at ___x and ___ at ___x. The most useful zoom was ___ because ___. One limit of my evidence is ___."
Extension: compare plant and animal samples
15 min
After you complete the cheek epithelial observation, your teacher may open an extension with one plant sample, for example Elodea or onion. This part does not replace your main observation and is not required.
Class sample comparison
Each group contributes one useful view. This table is not automatically graded.
| Group | Sample | Zoom | Visible feature | Classification | Limitation |
|---|---|---|---|---|---|
Compare one plant and one animal sample. What visible feature is most convincing for distinguishing them, and what feature could mislead you?
