Inclined Plane: measuring acceleration with real data
Students use the Inclined Plane remote lab to test distance-time-squared reasoning, estimate acceleration from sensor times, and explain uncertainty in real data.
Learning Outcomes
Collect sensor-time evidence from the LabsLand Inclined Plane remote lab.
Test whether distance is better compared with time or time squared.
Estimate acceleration using d = 1/2 a t^2 and explain the units.
Write a claim-evidence-reasoning conclusion that treats real measurement uncertainty honestly.
Student activity preview
Activity Content
Preview only. In a class session, students can fill in responses and submit their work to the teacher.
Frame the investigation
10 min

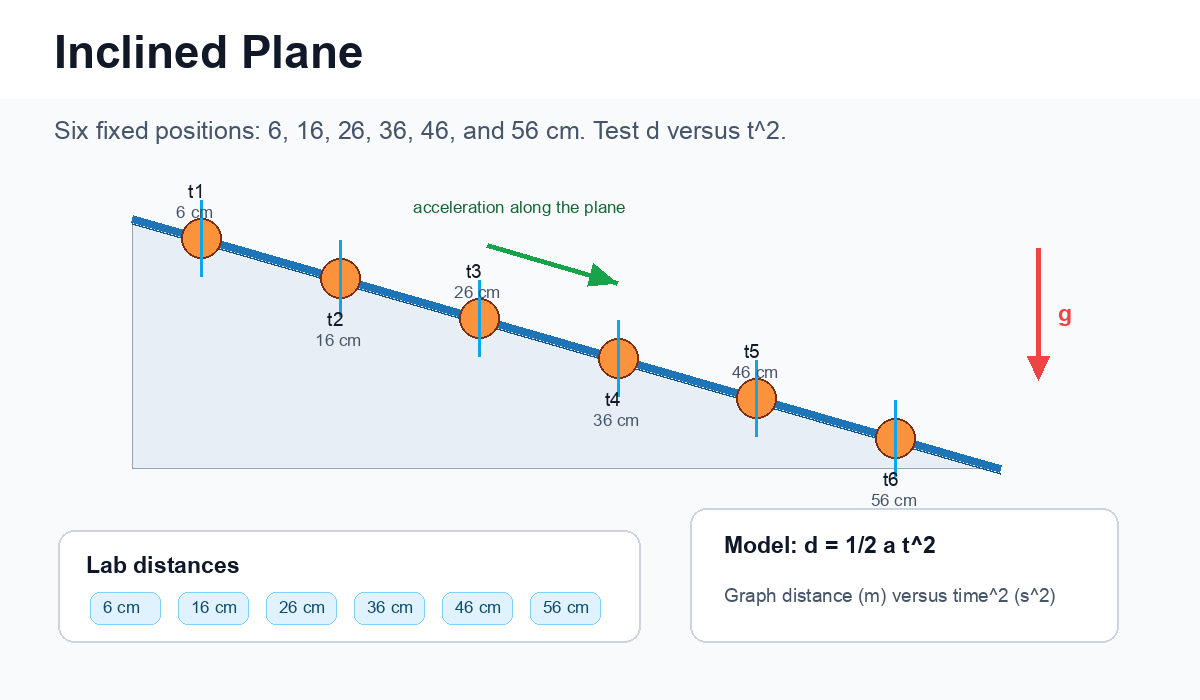

An inclined plane is a ramp. In this remote lab, a ball moves down a ramp and passes six sensors placed at known distances from the start: 6, 16, 26, 36, 46, and 56 cm. Each sensor records the elapsed time from the start of the motion to that position.
Position or distance tells how far the ball has traveled from the start. Time tells how long the ball took to reach that position. Speed tells how fast the ball is moving at an instant; acceleration tells how the speed changes. Before using the lab data, make a prediction about how distance and time should be related when a ball starts almost from rest and speeds up. Think about whether twice the distance should mean exactly twice the time, less than twice the time, or no change.
If a ball starts from rest and travels twice as far while acceleration is roughly constant, what should happen to the elapsed time?
This prediction is linked to a model for approximately constant acceleration. In that model, distance is not directly proportional to time. It is proportional to time squared, written as t^2.
In this activity, you will estimate the acceleration along the track. That value does not have to be g = 9.8 m/s^2, because the ball is not falling vertically; it is moving along a ramp at a particular angle. Only a validated near-vertical run should be interpreted as an estimate of g.
Model to test
Use this model to connect the six sensor distances with the relationship d = 1/2 a t^2. Here d is distance in meters, t is time in seconds, and a is acceleration in m/s^2.
Explain your prediction in your own words. Include one controlled variable you should keep fixed during the run, such as release setup, angle, or the way you read the sensor table.
Use the remote lab deliberately
12 min
What the remote lab shows

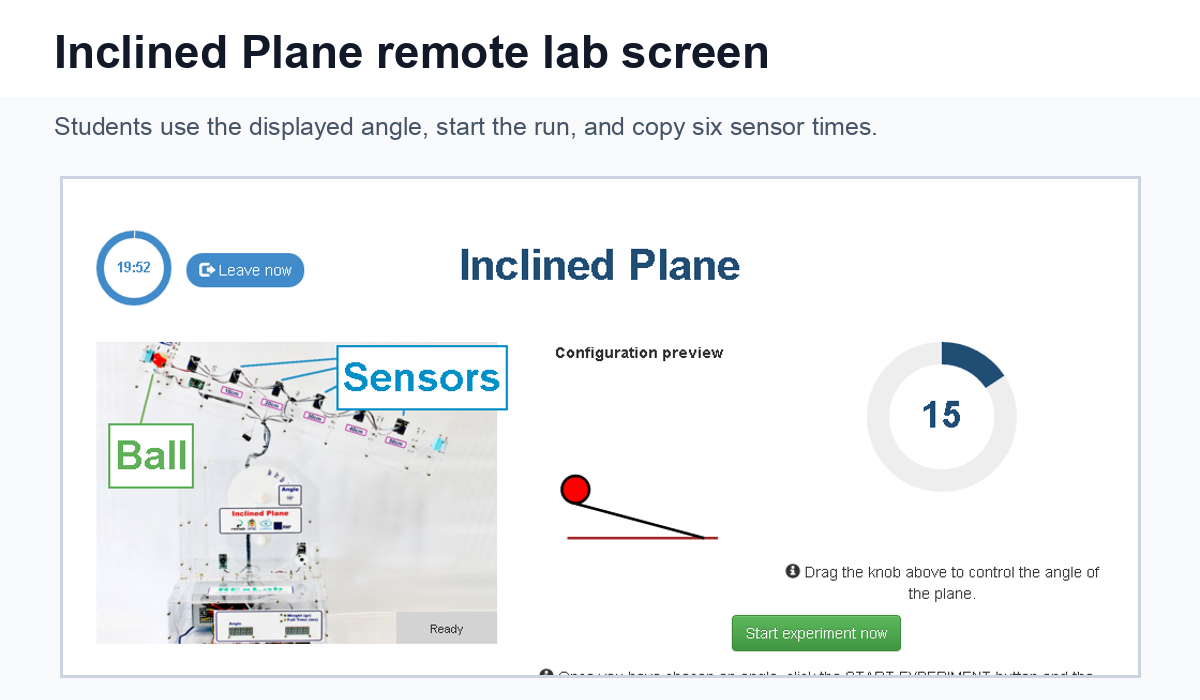

The lab lets you start the experiment, watch the ball move, and read six sensor times. The 15 degree angle in this screenshot is only an example; do not copy 15 degrees unless your own session shows 15 degrees. Use the angle shown in your own student lab session and record it with your data.
Lab strategy
Use one angle for your main data set. Do not change angle halfway through the table: all six rows should come from the same run or the same setting. Use the angle shown in your student lab session unless your teacher tells you to change it before starting. The lab angle is measured from the horizontal ramp position. Your evidence must show the real angle used, even when it is not 90 degrees.
Open the Inclined Plane lab
Open the Inclined Plane lab from Teach.
Use the angle shown in the lab for this run. If your teacher has announced a specific value, make sure the displayed angle, measured from the horizontal, matches it before starting.
Start the experiment and watch the ball pass the sensors.
After the run finishes, read the sensor-time table shown by the lab. Copy those elapsed times into the
Sensor timing evidencetable in the next section, one time for each position: 6, 16, 26, 36, 46, and 56 cm.Record the angle in the next question. If possible, include a screenshot or a clear note of the angle with your graph evidence.
Restart only if you need to repeat a clearly failed run or if your teacher opens the angle-comparison extension.
What angle did you use? If the lab or your teacher fixed the angle, write that clearly.
Record and process evidence
16 min
Complete one row for each lab sensor. In Distance (cm), type the six lab positions: 6, 16, 26, 36, 46, and 56 cm. These distances are measured from the start, not from the previous sensor. For the 16 cm sensor, use 0.16 m, not 0.10 m. In Distance (m), divide centimeters by 100. In Time (s), copy the lab time converted to seconds; if the lab shows milliseconds, divide by 1000. In t^2 (s^2), multiply the time in seconds by itself. Example: if the 56 cm sensor time is 820 ms, then 56 cm = 0.56 m, 820 ms = 0.820 s, and t^2 = 0.820^2 = 0.6724 s^2. Use the notes column for doubts, rounding, or a reading that seems unusual. If the rendered table shows extra blank rows, leave them blank.
Sensor timing evidence
Fill exactly the six sensor rows. Type the distances 6, 16, 26, 36, 46, and 56 cm in order. These are positions from the start, not gaps between sensors. Enter distance in meters, time converted to seconds, and t^2 calculated from that time. Leave any extra blank rows unused.
| Distance cm | Distance m | Time s | t^2 s^2 | Note or doubt |
|---|---|---|---|---|
Write the two conversions you used: centimeters to meters and milliseconds to seconds. Include one example, such as 56 cm = 0.56 m.
Graph and calculate
18 min
Now test the model with a graph. If you graph distance against time, the result does not have to be a straight line. If you graph distance against t^2, motion with approximately constant acceleration should look closer to a straight line. That is why we use t^2: it turns d = 1/2 a t^2 into a relationship like "distance = slope x time squared".
From sensor times to a graph
Conceptual illustration: your exact lab screen and graph tool may look different. Each row of your table becomes one point on the graph. The graph helps you decide whether the sensor evidence follows the constant-acceleration model.
Use this model:
- Model: d = 1/2 x a x t^2
- Rearranged formula: a = 2d / t^2
- Graph-slope method: if the trendline slope is m, then m is about 1/2 x a, so a is about 2m.
Create a graph with t^2 in seconds squared on the horizontal axis and distance in meters on the vertical axis. Axis example: x-axis = t^2 (s^2) and y-axis = distance (m); do not put plain time t (s) on the x-axis. Each point should come from one row of your table. Quick spreadsheet steps: copy the t^2 and distance columns, select those two columns, insert a scatter plot, check that t^2 is on the x-axis and distance is on the y-axis, then add axis labels with units. Add a trendline if your tool allows it. If the trendline equation looks like y = mx + b, the value of m is the slope. If the points are close to a straight line, the slope is approximately 1/2 a, so acceleration is approximately twice the slope.
Graph evidence
Attach a file if your graph is in a spreadsheet, PDF, CSV, presentation, or text file. If your graph evidence is a screenshot or image, paste it in the text box or paste a visible link instead of using the file attachment. The graph should show distance (m) on the vertical axis, t^2 (s^2) on the horizontal axis, unit labels, and, if possible, a trendline equation or slope estimate. If the teacher checked the graph externally, write that and include the point pairs used.
Does your d versus t^2 graph support the constant-acceleration model? Use one feature of your table or graph as evidence, such as whether the points line up, whether the trend is close to straight, or whether one row stands out.
Now that you have checked the table and graph, which row, if any, looks least reliable? A row might be less reliable if the time does not increase as distance increases, if the graph point is far from the trend, or if that row gives an acceleration very different from the other rows. Explain whether you kept it, repeated the run, or marked it as uncertain. If all rows look coherent, say so and explain why.
Estimate the acceleration along the track in m/s^2. In the number box, write only your acceleration estimate. Use the decimal separator the platform accepts; if a comma is not accepted, use a decimal point, for example 1.85. In the explanation box, show your work. Recommended method: use a = 2 x slope if you have a graph slope. If you cannot get a slope, calculate a = 2d/t^2 with one representative row, preferably the 56 cm row if it does not look uncertain. Explain which row or slope you used and why the result should not be called g if the angle was not almost vertical.
If every time reading were slightly too high, what would happen to the acceleration calculated from a = 2d/t^2?
Make the scientific claim
7 min
Write a 4-6 sentence claim-evidence-reasoning conclusion. Include the real angle used, your acceleration estimate with units, one table or graph detail that supports using t^2, one source of uncertainty, and one sentence clarifying that you estimated acceleration along the track, not necessarily g. You can use this frame: "At an angle of ___ degrees, I estimated the acceleration along the track to be ___ m/s^2. My evidence is that the graph of distance versus t^2 ___. One uncertainty was ___. This supports the model because ___. This is acceleration along the ramp, not necessarily g, because ___."
Optional extension: compare an angle
10 min
If time remains and the lab lets you change angle, repeat one run at a different angle such as 20, 30, or 45 degrees. Use only the final 56 cm time if a full table would take too long. Do not do this extension if your session only allows one angle.
Compare the final 56 cm time at the two angles. Which angle gave the shorter time? Explain why a larger angle usually gives a larger acceleration along the ramp, while a smaller angle gives a smaller acceleration and a longer time.
