Digital Logic on the DE1-SoC (4/6): Counters and shift registers

In Lesson 3 you built circuits that remember a bit or a byte: a flip-flop and a parallel-load register. Each one updates its stored value on a clock edge. In this lesson you reuse that idea to build circuits that move on their own every clock edge: a counter that climbs 0, 1, 2, 3, … and a shift register that slides its bits sideways.

The board's clock is CLOCK_50, a 50 MHz square wave: 50,000,000 rising edges every second. If a counter advanced once per CLOCK_50 edge, it would run through all sixteen values of a 4-bit counter about three million times per second. You would see nothing but a steady blur of LEDs, and the remote camera — which captures only a handful of frames per second — would have no chance.

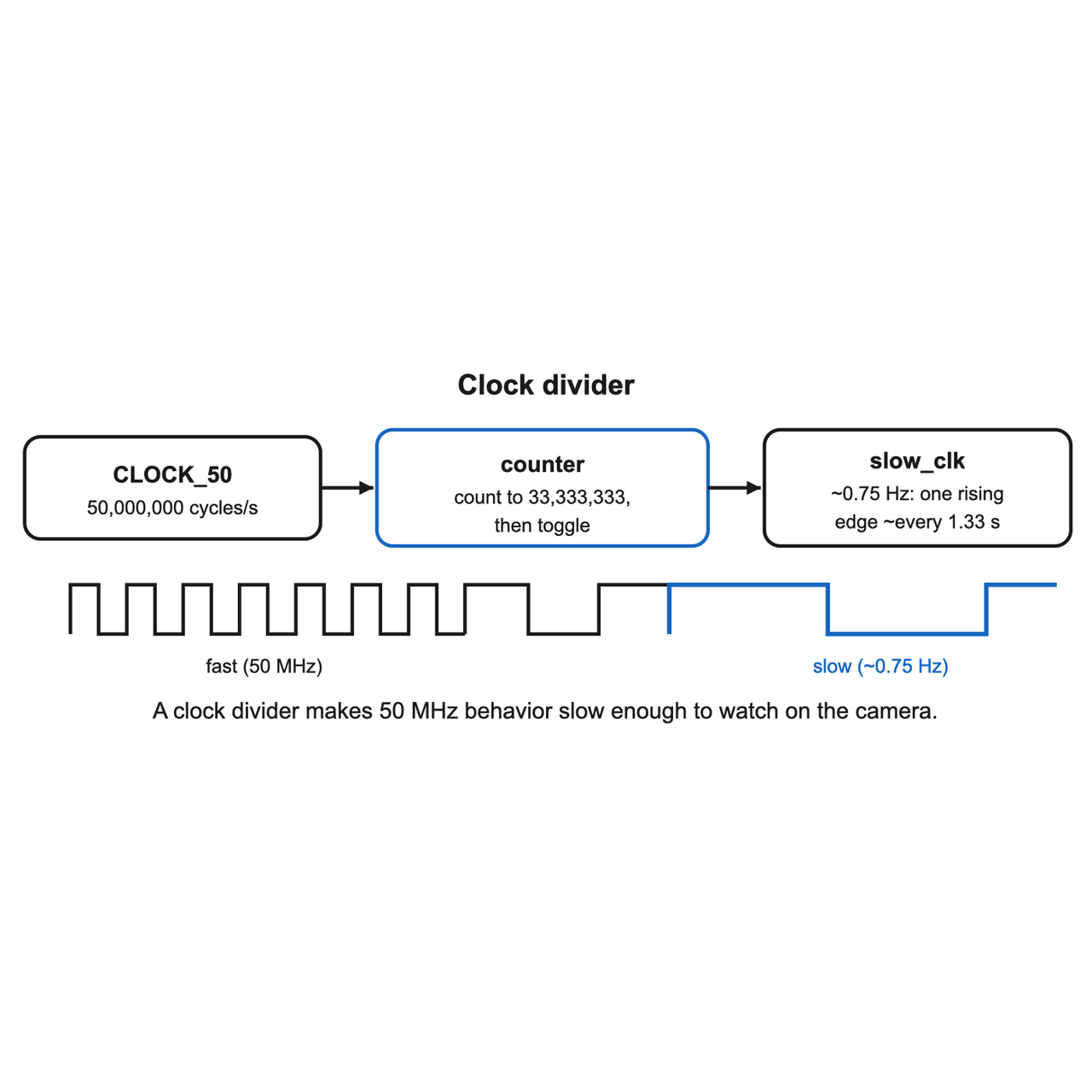

So we slow things down with a clock divider. A clock divider is itself just a counter: it counts CLOCK_50 edges and, when it reaches a chosen terminal count DIV, it toggles a slower signal called slow_clk and starts counting again. The bigger DIV is, the slower slow_clk runs. We then clock the *real* circuit (the 4-bit counter, the shift register) from slow_clk instead of from CLOCK_50.

As in every lesson, sequential designs must declare the clock themselves. The default leds_mirror.v template lists only switches, buttons, and LEDs and has no clock, so each module in this lesson adds input CLOCK_50; to its port list. The board signals are the same as always: SW[9:0] (a switch up is 1), KEY[3:0] (active-low: a pressed button reads 0), LEDR[9:0] (active-high: lit when driven 1), and HEX0–HEX5 (active-low seven-segment, segment lit when driven 0).

A counter is a register whose next value is simply its current value plus one. A 4-bit counter holds the values 0 through 15; after 15 it wraps back to 0 automatically, because 15 + 1 = 16 = 10000 in binary and only the low four bits are kept (0000). You do not need special wrap-around code — the register width does it for you.

The design below has two parts. The divider counts CLOCK_50 edges up to DIV and toggles slow_clk. The counter advances by one on every rising edge of slow_clk, and KEY[0] resets it to 0 (active-low: held down means reset). The count drives LEDR[3:0] in binary and also HEX0 as a single hexadecimal digit (0–9, then A–F for 10–15).

The timing, stated carefully. With DIV = 33,333,333, the divider toggles slow_clk after about 0.67 seconds (33,333,333 edges out of 50,000,000 per second is about two-thirds of a second). A counter step happens only on a rising edge of slow_clk, and a square wave has one rising edge per *full* period — one low-to-high plus one high-to-low. So the counter advances about once every 1.33 seconds, roughly 0.75 Hz. Watch for a new value a little more than once per second.

A register-width pitfall to notice. The divider register here is 27 bits wide. That is deliberate. A 26-bit register can only hold values up to 2^26 - 1 = 67,108,863. A divider value such as DIV = 100,000,000 simply does not fit in 26 bits, so a design using that width would be broken before it ran. With 27 bits the register holds up to 2^27 - 1 = 134,217,727, so both DIV = 100,000,000 (slower) and DIV = 8,333,333 (faster) fit and work. Always check that a constant fits the register you declared for it.

One honest caveat. Clocking a register directly from a divided slow_clk, as we do here, is a common teaching shortcut because it makes the idea concrete. In production designs you normally keep everything on the single fast CLOCK_50 and instead use a clock-enable: a one-cycle pulse that tells the register "update on this edge." That keeps the whole design on one real clock, which the synthesis tools analyze far better. We use the divided clock here only because it is the clearest way to *see* the counter move.

// Lesson 4 - Exercise 2-C: 4-bit counter with clock divider
// KEY[0]=reset (active-low). LEDR[3:0]=count, HEX0=count as a hex digit.
// The divider DIV sets the speed. With DIV=33,333,333 a rising slow_clk edge
// (one count step) happens about every 1.33 s. The register is 27 bits wide, so
// you can experiment with DIV = 8,333,333 (faster) or 100,000,000 (slower).
module leds_mirror(CLOCK_50, KEY, LEDR, HEX0);
    input        CLOCK_50;
    input  [3:0] KEY;       // KEY[0] = reset_n
    output [9:0] LEDR;
    output [6:0] HEX0;

    localparam [26:0] DIV = 27'd33_333_333;   // 27 bits: fits up to 134,217,727
    reg [26:0] div_count;
    reg        slow_clk;
    always @(posedge CLOCK_50) begin
        if (!KEY[0]) begin div_count <= 0; slow_clk <= 0; end
        else if (div_count == DIV) begin div_count <= 0; slow_clk <= ~slow_clk; end
        else div_count <= div_count + 1'b1;
    end

    reg [3:0] count;
    always @(posedge slow_clk or negedge KEY[0]) begin
        if (!KEY[0]) count <= 4'd0;
        else         count <= count + 1'b1;   // wraps 15 -> 0 automatically
    end

    assign LEDR[3:0] = count;
    assign LEDR[9:4] = 6'b0;

    function [6:0] seg;        // active-low {g,f,e,d,c,b,a}
        input [3:0] d;
        case (d)
            4'h0: seg=7'b1000000; 4'h1: seg=7'b1111001; 4'h2: seg=7'b0100100; 4'h3: seg=7'b0110000;
            4'h4: seg=7'b0011001; 4'h5: seg=7'b0010010; 4'h6: seg=7'b0000010; 4'h7: seg=7'b1111000;
            4'h8: seg=7'b0000000; 4'h9: seg=7'b0010000; 4'hA: seg=7'b0001000; 4'hB: seg=7'b0000011;
            4'hC: seg=7'b1000110; 4'hD: seg=7'b0100001; 4'hE: seg=7'b0000110; 4'hF: seg=7'b0001110;
            default: seg=7'b1111111;
        endcase
    endfunction
    assign HEX0 = seg(count);
endmodule

Build the counter on the real board, watch it climb, reset it, and then try the two other divider values.

Upload your evidence. Watch for a moment when HEX0 shows the digit C (decimal 12), capture a camera screenshot (LEDR[3:0] should read 1100 at the same time), and attach it below.

A plain 4-bit counter runs 0–15 and shows A–F for the top six values. Many real displays want a single decimal digit instead: count 0, 1, 2, …, 9, then wrap straight back to 0. A counter that counts only 0–9 is called a BCD (binary-coded decimal) counter.

The change is small: instead of letting the 4-bit register wrap on its own at 15, you detect when the count reaches 9 and force the next value to 0. Replace the counter's always block with logic of this shape:

    reg [3:0] count;
    always @(posedge slow_clk or negedge KEY[0]) begin
        if (!KEY[0])           count <= 4'd0;
        else if (count == 4'd9) count <= 4'd0;   // wrap to 0 after 9
        else                    count <= count + 1'b1;
    end

Keep everything else (the divider, the LEDR/HEX0 assignments, the seg function) the same. Now HEX0 should cycle 0 through 9 and never show A–F.

A shift register is a row of flip-flops where, on every clock edge, each bit moves into its neighbor and a brand-new bit enters at one end. It is the heart of how serial links work: protocols like UART, SPI, and I2C send data one bit at a time, and a shift register is what assembles those bits into a byte (or takes a byte apart bit by bit).

The design below is an 8-bit register shreg[7:0]. On each rising slow_clk edge, while shift is enabled, it does:

        shreg <= {shreg[6:0], SW[0]};   // shift LEFT, bring SW[0] into bit 0

Read that right-hand side carefully: it takes the low seven bits shreg[6:0], moves them up one position, and drops SW[0] into bit 0. Every bit moves toward the high end, so this is a left shift. The controls are SW[0] = the serial bit coming in, KEY[0] = reset (active-low), and KEY[1] = shift-enable (active-low — hold KEY[1] down to make it shift on each tick).

The expected pattern. Reason it through instead of trusting the camera orientation. Start from 0000_0000. Set SW[0] = 1 and let four ticks pass: the register fills from bit 0 upward, giving 0000_0001, then 0000_0011, 0000_0111, 0000_1111. Now set SW[0] = 0 and let four more ticks pass: zeros now enter at bit 0 and push the ones up and out, giving 0001_1110, 0011_1100, 0111_1000, and finally 1111_0000. So after four 1s followed by four 0s, shreg[7:0] is 1111_0000.

Bit value versus what you see. Record both the binary register value *and* what the camera shows. The physical order of the LEDs on the board may look mirrored relative to how you write the bits (shreg[7] on one side, shreg[0] on the other), so the lit LEDs can appear flipped left-to-right compared to the number 1111_0000. That is a labeling/orientation effect, not a logic error — which is exactly why you write down the value you computed alongside the photo.

// Lesson 4 - Exercise 2-D: 8-bit shift register (shifts left)
// SW[0]=serial data in, KEY[0]=reset (active-low), KEY[1]=shift-enable (active-low, hold to shift).
// LEDR[7:0]=register contents. shreg <= {shreg[6:0], SW[0]} shifts LEFT and brings SW[0] into bit 0.
// After four ticks with SW0=1 then four ticks with SW0=0, the value shreg[7:0] is 1111_0000.
// On the board the lit LEDs may look mirrored, so always record BOTH the bit value and what you see.
module leds_mirror(CLOCK_50, KEY, SW, LEDR);
    input        CLOCK_50;
    input  [3:0] KEY;       // KEY[0]=reset_n, KEY[1]=shift_enable_n
    input  [9:0] SW;        // SW[0] = serial data in
    output [9:0] LEDR;

    localparam [26:0] DIV = 27'd33_333_333;
    reg [26:0] div;
    reg        slow_clk;
    always @(posedge CLOCK_50) begin
        if (!KEY[0]) begin div <= 0; slow_clk <= 0; end
        else if (div == DIV) begin div <= 0; slow_clk <= ~slow_clk; end
        else div <= div + 1'b1;
    end

    reg [7:0] shreg;
    always @(posedge slow_clk or negedge KEY[0]) begin
        if (!KEY[0])      shreg <= 8'h00;
        else if (!KEY[1]) shreg <= {shreg[6:0], SW[0]};   // shift left, bring in SW[0]
    end

    assign LEDR[7:0] = shreg;
    assign LEDR[9:8] = 2'b0;
endmodule

Build the shift register and watch a single lit LED march across the row, then watch zeros follow it.

Upload your evidence. After four ticks of SW0=1 then four ticks of SW0=0, release KEY[1] to freeze the pattern (shreg = 1111_0000), capture a camera screenshot, note in your records whether the lit LEDs look mirrored, and attach it below.

Shift the other way. To make the register shift right instead of left — each bit moving toward the low end, with the new bit entering at the top (shreg[7]) — you change a single line. Replace the shift assignment with:

        else if (!KEY[1]) shreg <= {SW[0], shreg[7:1]};   // shift right, bring in SW[0] at the top

Only that one line changes. Now the incoming SW[0] lands in shreg[7] and the high seven bits shreg[7:1] move down into shreg[6:0].

Extension — a ring counter. A ring counter feeds the register's own output back into its input instead of taking a new external bit, so a fixed pattern circulates forever. Make a left-shifting ring that feeds the top bit shreg[7] back into bit 0, and initialize the register to 0000_0001 so exactly one lit LED chases around the row. Use a reset that loads 8'h01 (not 8'h00) and a shift line of the form shreg <= {shreg[6:0], shreg[7]};. Hold KEY[1] and watch one LED loop around endlessly.
