Digital Logic on the DE1-SoC (2/6): Truth tables, SOP/POS, K-maps, and a multiplexer

In Lesson 1 you wired single gates to switches. Real designs start one level up: you decide what a circuit should do — usually as a truth table — and then find a gate network that produces it. This lesson works one function from both directions and then makes it smaller.

The function for the first two exercises is F(C,B,A), a function of three inputs. You will wire SW[0]=A, SW[1]=B, SW[2]=C, and show the result on LEDR[0]. Here is its truth table. The rows are listed in binary counting order C B A from 000 to 111:

Truth table for F(C,B,A), in binary counting order:

- Row 0: C B A = 0 0 0 -> F=0
- Row 1: C B A = 0 0 1 -> F=1
- Row 2: C B A = 0 1 0 -> F=0
- Row 3: C B A = 0 1 1 -> F=1
- Row 4: C B A = 1 0 0 -> F=1
- Row 5: C B A = 1 0 1 -> F=0
- Row 6: C B A = 1 1 0 -> F=1
- Row 7: C B A = 1 1 1 -> F=0

F is 1 on four of the eight rows and 0 on the other four — read them off the table yourself before you answer below. This split drives the whole lesson: the F=1 rows give you the sum of products, and the F=0 rows give you the product of sums. Keep this table in front of you for both exercises — everything below refers back to it.

Recall the board conventions you used in Lesson 1: a switch up is logic 1, and LEDR is active-high, so the LED lights when the output is 1. These exercises are purely combinational — the output depends only on the current switch positions, so there is no clock to declare.

Minterm. A *minterm* is a single AND (product) term built from all the inputs — each input appears once, plain or negated — that is 1 for exactly one row of the truth table. For three inputs there are eight minterms, one per row. Row 1 is C=0, B=0, A=1, so its minterm is (~C & ~B & A): this product is 1 only when C=0, B=0, and A=1, and 0 everywhere else.

Canonical sum of products (SOP). To build F, OR together the minterm of every row where F=1. Because each minterm is 1 for exactly its own row, the OR is 1 on precisely the F=1 rows and 0 elsewhere — which is exactly F. The four F=1 rows (1, 3, 4, 6) give:

- Row 1 C=0,B=0,A=1 → (~C & ~B & A)
- Row 3 C=0,B=1,A=1 → (~C & B & A)
- Row 4 C=1,B=0,A=0 → (C & ~B & ~A)
- Row 6 C=1,B=1,A=0 → (C & B & ~A)

So the canonical SOP is F = (~C & ~B & A) | (~C & B & A) | (C & ~B & ~A) | (C & B & ~A). That is correct but wasteful: four 3-input AND terms feeding a 4-input OR.

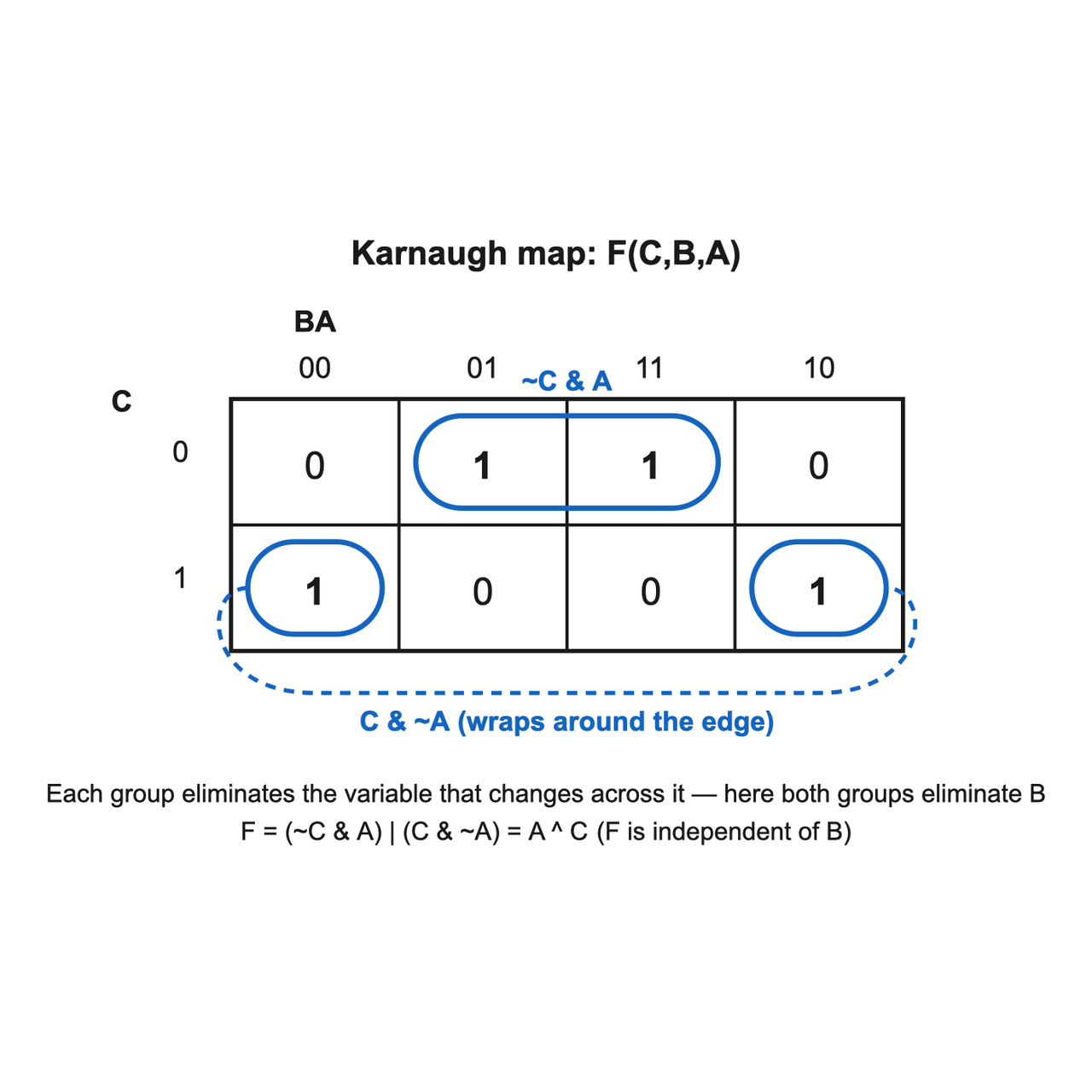

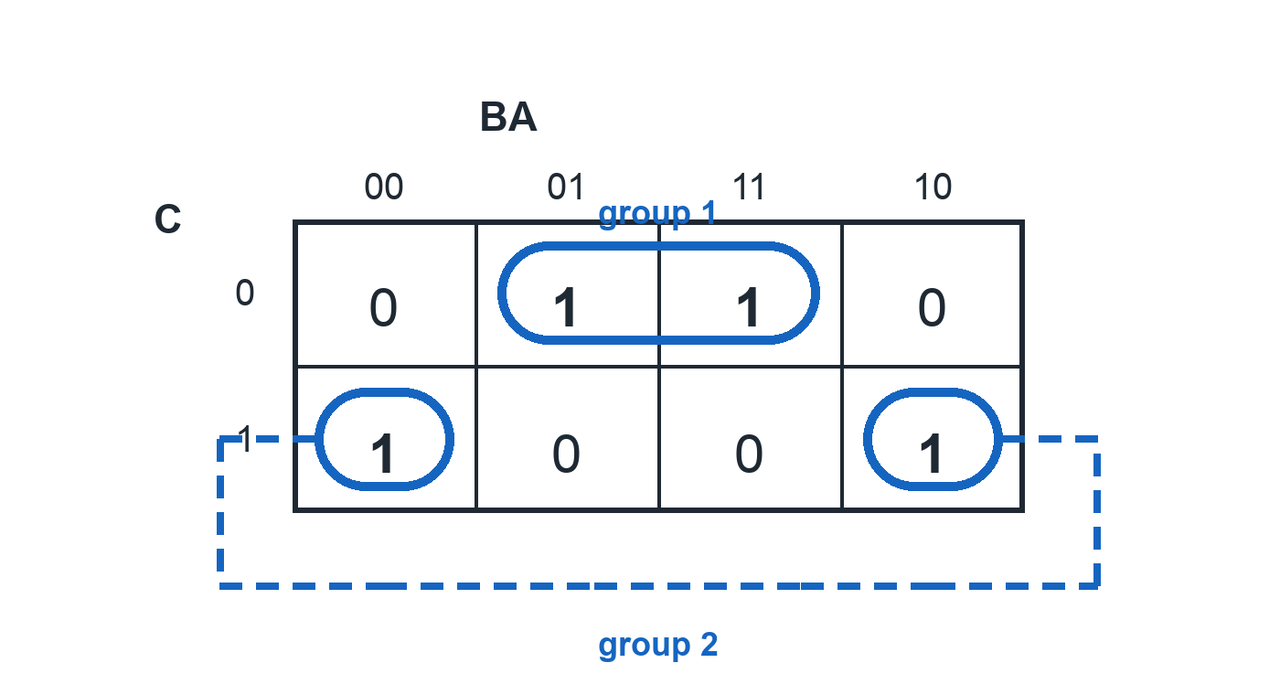

Minimizing with a Karnaugh map. A *K-map* is the truth table redrawn so that physically adjacent cells differ in exactly one input. When two adjacent 1s sit next to each other, the variable that *changes* between them does not matter for that pair and can be dropped, leaving a smaller term. Group the four F=1 minterms into two pairs:

- Group minterms 1 and 3. Row 1 is C=0, B=0, A=1; row 3 is C=0, B=1, A=1. Both have C=0 and A=1; only B differs (0 vs 1). Because B changes while the term stays 1, B is eliminated, and the pair collapses to (~C & A).
- Group minterms 4 and 6. Row 4 is C=1, B=0, A=0; row 6 is C=1, B=1, A=0. Both have C=1 and A=0; again only B differs, so B is eliminated and the pair collapses to (C & ~A).

OR the two reduced terms: F = (~C & A) | (C & ~A). That is the definition of exclusive-OR between A and C, so:

> F = A ^ C

Notice what happened: B was eliminated from *both* groups, so B does not appear in the minimal expression at all. That is the K-map telling you something real about the function — F does not depend on B. You can confirm it directly in the truth table: find two rows that differ only in B and check that F is the same in both.

Now put the function on the real board. You will run the canonical SOP first, verify all eight rows, then switch to the minimal F = A ^ C and confirm you get the identical outputs.

The module below ships with the minimal form active and the canonical SOP on a commented line. For the first pass, comment out the minimal assign and uncomment the canonical SOP line so you are testing the four-term version; then reverse it for the second pass.

// Lesson 2 - Exercise 1-B: Sum of Products (SOP)
// F(C,B,A): minterms 1,3,4,6.  SW[0]=A, SW[1]=B, SW[2]=C.  Output on LEDR[0].
// Replace ALL contents of leds_mirror.v with this module.
module leds_mirror(SW, LEDR);
    input  [9:0] SW;          // SW[0]=A, SW[1]=B, SW[2]=C
    output [9:0] LEDR;

    wire A = SW[0];
    wire B = SW[1];
    wire C = SW[2];

    // Canonical SOP (one product term per F=1 row). Uncomment to test it first:
    // assign LEDR[0] = (~C & ~B & A) | (~C & B & A) | (C & ~B & ~A) | (C & B & ~A);

    // Minimal form from the K-map: F = A XOR C
    assign LEDR[0] = A ^ C;

    assign LEDR[9:1] = 9'b0;  // unused LEDs off
endmodule

Upload your evidence. Capture a camera screenshot of the minimal F = A ^ C running with the switches set to a row where F = 1 (for example C B A = 100: SW[2] up, SW[1] and SW[0] down, so LEDR[0] is lit), and attach it below.

> Optional bonus (no upload required). Quartus reports how many logic elements a design uses. If your lab surfaces that resource report, synthesize the four-term canonical SOP and the one-operator A ^ C and compare their logic-element counts — the minimal form should use fewer. Treat this as exploration only; the in-IDE resource report is not guaranteed on every lab session, so it is not part of the required evidence.

The SOP built F from its 1 rows. The product of sums (POS) builds the same F from its 0 rows instead.

Maxterm. A *maxterm* is a single OR (sum) term using all the inputs — each plain or negated — that is 0 for exactly one row. It is the mirror image of a minterm. For row 0 (C=0, B=0, A=0) the maxterm is (A | B | C): this OR is 0 only when A, B, and C are all 0, and 1 on every other row.

Canonical product of sums. AND together the maxterm of every row where F=0. Each maxterm forces the output to 0 on its own row and leaves it 1 elsewhere, so the AND of all of them is 0 on exactly the F=0 rows — again exactly F. The four F=0 rows are 0, 2, 5, 7:

- Row 0 C=0,B=0,A=0 → (A | B | C)
- Row 2 C=0,B=1,A=0 → (A | ~B | C)
- Row 5 C=1,B=0,A=1 → (~A | B | ~C)
- Row 7 C=1,B=1,A=1 → (~A | ~B | ~C)

In each maxterm, a variable appears *negated* when it is 1 in that F=0 row (so the term goes to 0 there). The module below implements this canonical POS directly. It describes the very same function, so its eight outputs must match what you already recorded: rows 0..7 give 0, 1, 0, 1, 1, 0, 1, 0.

// Lesson 2 - Exercise 1-C: Product of Sums (POS)
// Same F(C,B,A). Maxterms (F=0 rows): 0, 2, 5, 7.  SW[0]=A, SW[1]=B, SW[2]=C.  Output LEDR[0].
// Expected outputs for rows 0..7 (C,B,A = 000..111): 0,1,0,1,1,0,1,0  (identical to the SOP version).
module leds_mirror(SW, LEDR);
    input  [9:0] SW;          // SW[0]=A, SW[1]=B, SW[2]=C
    output [9:0] LEDR;

    wire A = SW[0];
    wire B = SW[1];
    wire C = SW[2];

    // Canonical POS: one sum term per F=0 row.
    //   Row 0 (C=0,B=0,A=0): (A | B | C)
    //   Row 2 (C=0,B=1,A=0): (A | ~B | C)
    //   Row 5 (C=1,B=0,A=1): (~A | B | ~C)
    //   Row 7 (C=1,B=1,A=1): (~A | ~B | ~C)
    assign LEDR[0] = (A | B | C) & (A | ~B | C) & (~A | B | ~C) & (~A | ~B | ~C);

    assign LEDR[9:1] = 9'b0;
endmodule

A multiplexer (MUX) is a selector: it routes one of several data inputs to a single output, chosen by a set of select lines. A 4-to-1 MUX has four data inputs and needs two select lines (because two bits choose among 2^2 = 4 inputs). It behaves like a rotary switch: the select value picks which data line is connected to the output.

The pin assignment for this exercise — stated explicitly so the bit order is unambiguous:

- Data inputs: SW[3]=D3, SW[2]=D2, SW[1]=D1, SW[0]=D0
- Select lines: SW[5]=S1, SW[4]=S0
- Output: LEDR[0] = Y

The select value {S1, S0} chooses the data line: 00 → D0, 01 → D1, 10 → D2, 11 → D3. The module uses a case statement inside always @(*). The default branch is not decorative — in a combinational always block, if some input combination left Y unassigned, the synthesizer would infer a latch to "remember" the old value, turning your intended pure-combinational logic into accidental memory. Assigning Y in every branch (here via default) guarantees Y always has a defined value and no latch is created.

// Lesson 2 - Exercise 1-D: 4-to-1 multiplexer (case-statement style)
// Data inputs:  SW[3]=D3, SW[2]=D2, SW[1]=D1, SW[0]=D0
// Select lines: SW[5]=S1, SW[4]=S0
// Output:       LEDR[0] = Y
// For SW[3:0]=1010, Y for S1:S0 = 00,01,10,11 is 0,1,0,1.
module leds_mirror(SW, LEDR);
    input  [9:0] SW;
    output [9:0] LEDR;

    wire D0 = SW[0], D1 = SW[1], D2 = SW[2], D3 = SW[3];
    wire S0 = SW[4], S1 = SW[5];

    reg Y;
    always @(*) begin
        case ({S1, S0})
            2'b00:   Y = D0;
            2'b01:   Y = D1;
            2'b10:   Y = D2;
            2'b11:   Y = D3;
            default: Y = 1'b0;   // default avoids an inferred latch
        endcase
    end

    assign LEDR[0]   = Y;
    assign LEDR[9:1] = 9'b0;
endmodule

Upload your evidence. Capture a camera screenshot of the multiplexer with data SW[3:0] = 1010 and select S1:S0 = 01 (SW[4] up, SW[5] down) — this selects D1 = 1, so LEDR[0] is lit — and attach it below.

This exercise is optional. If you have time, it is a satisfying jump from a single LED to formatted output on the seven-segment displays.

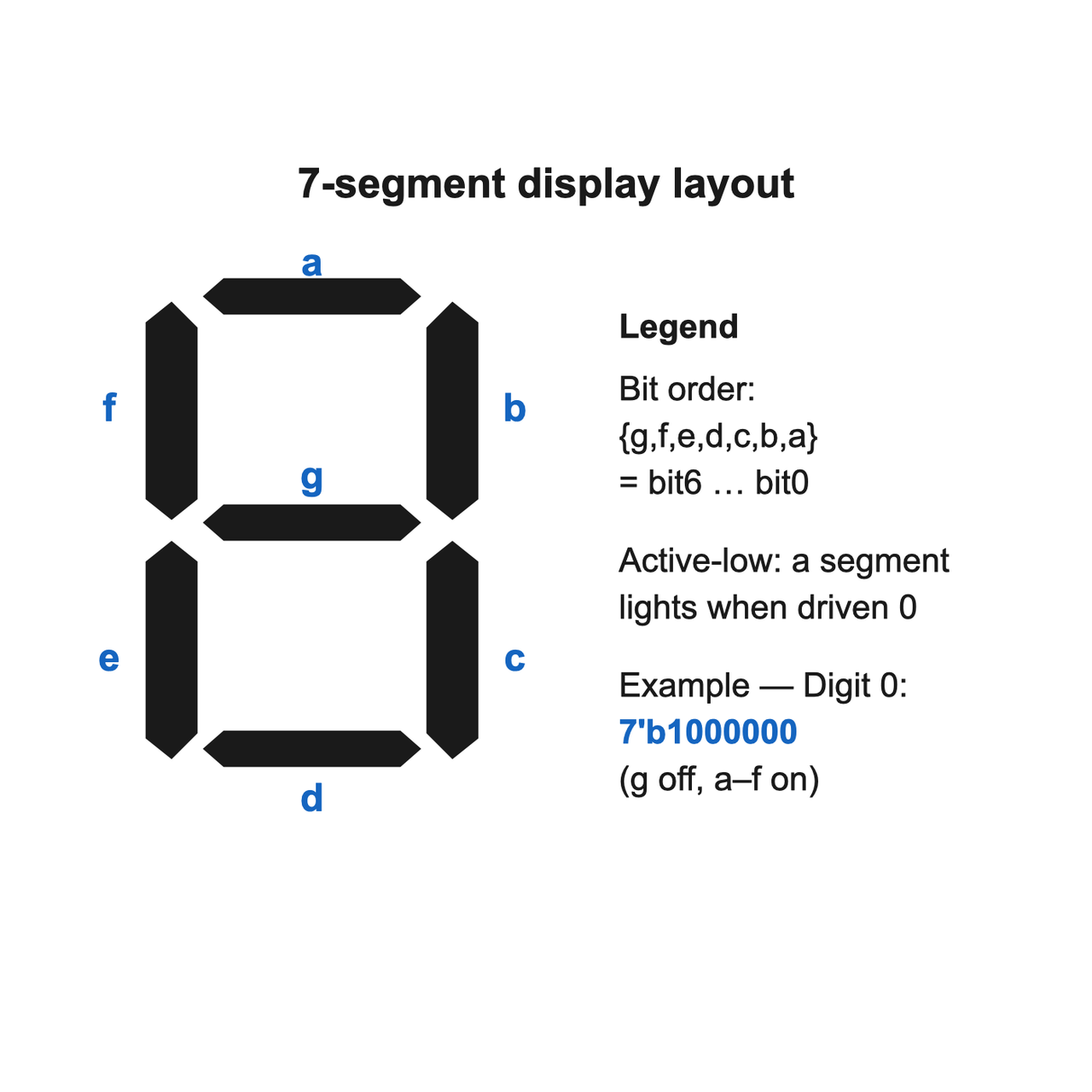

A seven-segment display has seven bars — labelled a through g — that light in combinations to draw a digit. On the DE1-SoC each HEX display is active-low and the bit order is {g, f, e, d, c, b, a}: a segment lights when you drive its bit to 0. So the pattern for the digit 0 (segments a,b,c,d,e,f on, g off) is 7'b1000000 — six 0s for the lit segments and a 1 for the unlit g.

The design below reads SW[3:0] as a value 0..15, shows the ones digit on HEX0 and the tens digit (0 or 1) on HEX1. Note one thing the default project does not give you for free: to drive HEX1 you must add output [6:0] HEX1 to the module's port list — the starter leds_mirror exposes only HEX0. The module below already declares both HEX0 and HEX1, so this is the example that makes the extra port concrete.

// Lesson 2 - Exercise 1-E (optional): two-digit decimal decoder
// SW[3:0] selects a value 0..15. HEX0 shows the ones digit, HEX1 shows the tens digit.
// 7-segment is active-low, segment order {g,f,e,d,c,b,a}: a segment lights when driven 0.
module leds_mirror(SW, HEX0, HEX1);
    input  [9:0] SW;        // SW[3:0] = value 0..15
    output [6:0] HEX0;      // ones digit
    output [6:0] HEX1;      // tens digit (0 or 1)

    wire [4:0] v = {1'b0, SW[3:0]};   // 0..15

    function [6:0] seg;               // decimal digit 0..9 -> active-low segments
        input [3:0] d;
        case (d)
            4'd0: seg = 7'b1000000; 4'd1: seg = 7'b1111001;
            4'd2: seg = 7'b0100100; 4'd3: seg = 7'b0110000;
            4'd4: seg = 7'b0011001; 4'd5: seg = 7'b0010010;
            4'd6: seg = 7'b0000010; 4'd7: seg = 7'b1111000;
            4'd8: seg = 7'b0000000; 4'd9: seg = 7'b0010000;
            default: seg = 7'b1111111;
        endcase
    endfunction

    wire [3:0] tens = (v >= 5'd10) ? 4'd1 : 4'd0;
    wire [3:0] ones = (v >= 5'd10) ? (v[3:0] - 4'd10) : v[3:0];

    assign HEX0 = seg(ones);
    assign HEX1 = seg(tens);
endmodule
