Nios V on DE1-SoC (2/5): C memory-mapped I/O

The Nios V processor sees hardware peripherals as memory addresses. In this lab, the starter program uses these addresses:

- LEDR at 0xFF200000: red LED output register.
- JP1 data at 0xFF200060: LabsLand logical switch input path.
- JP1 direction at 0xFF200064: GPIO direction register.
- JTAG UART at 0xFF201000: terminal output through printf.

The CPU reads and writes these addresses like normal memory, but the FPGA fabric routes each access to a peripheral instead of ordinary RAM. That is memory-mapped I/O.

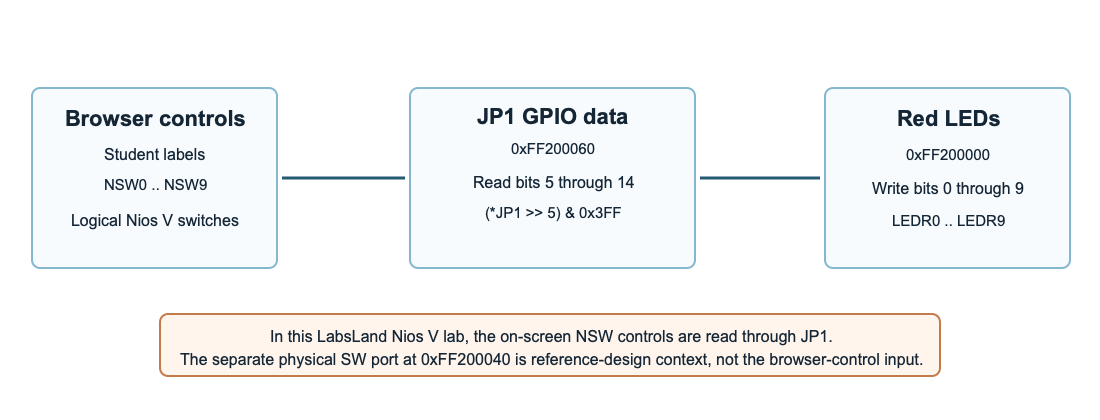

The browser controls are labelled NSW0..NSW9. They are not the physical SW0..SW9 port at 0xFF200040 in this current remote workflow. The logical NSW controls enter through JP1 GPIO bits, then the starter shifts those bits down before writing the LED register.

Reference boundary: the FPGAcademy DE1-SoC Computer with Nios V manual is the correct reference for the fixed Nios V computer and its memory-mapped peripheral map. This lesson deliberately uses the LabsLand-validated JP1 route for browser NSW controls rather than asking you to use the FPGAcademy physical switch register directly.

Key bit positions:

- NSW0 is read as JP1 data bit 5 and becomes LEDR0.
- NSW1 is read as JP1 data bit 6 and becomes LEDR1.
- NSW2 is read as JP1 data bit 7 and becomes LEDR2.
- The same pattern continues through NSW9, which is read as JP1 data bit 14 and becomes LEDR9.

For this lab profile, writing 0 to the JP1 direction register configures the
JP1 lines used by NSW0..NSW9 as inputs. That is why the program writes
*JP1_DIR = 0; before it reads the JP1 data register.

Use the table to record three quick tests from the lab. Fill one row per switch pattern: predict the LEDR output first, then toggle the NSW control in the board view and write what you observed.

Keep the C IDE lab tab open. You can answer this section from the code below, but it is the same main.c file you just built and tested in the lab.

Focus on the loop:

*JP1_DIR = 0;
while (1) {
    *LEDS = (*JP1 >> 5) & 0x3FF;
}

The shift moves the JP1 bits used by LabsLand NSW0..NSW9 down to bit positions 0 through 9. The mask keeps only those ten bits before writing them to the LED register.

For example, when only NSW0 is on, JP1 bit 5 is 1. After >> 5, that value becomes bit 0, so LEDR0 turns on. The volatile qualifiers matter because the value behind JP1 can change because of hardware, not because of a C assignment. Without volatile, a compiler optimization could reuse an old value or remove a repeated register access that looks redundant in ordinary memory code.

Use the C IDE lab tab again. If the first board session is still open, you can
reuse it; if it has timed out, build the modified ELF and upload it again to
start a fresh board session. Change the program so the LEDs show a transformed
switch pattern, then click Build ELF, upload it, and test the transformed
behavior on the board.

Choose one transformation:

- Invert the ten switch bits before writing LEDs.
- Show only the lower five NSW controls on LEDR0..LEDR4.
- Shift the NSW pattern left by one LED position and explain what happens to NSW9.
